NEUTRİK NBNC75BLP9 BNC TİPİ KONNEKTÖRLER (NEUTRİK)

Marka : NEUTRİK

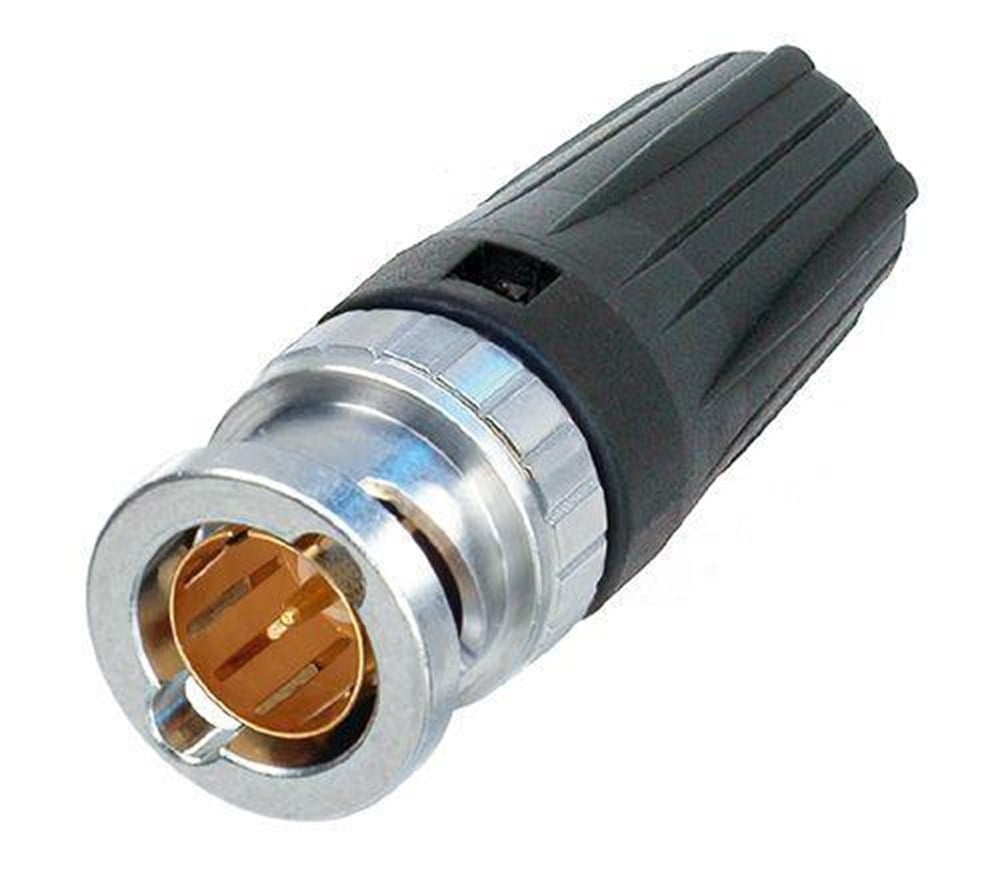

Neutrik NBNC75BLP9 BNC TİPİ KONNEKTÖRLER





Technical Information





Product
Title NBNC75BLP9
Connection Type BNC 75 Ω
Gender male
Electrical
Contact resistance ≤ 3 mΩ (inner)
Contact resistance ≤ 2 mΩ (outer)
Dielectric strength 1,5 kVdc
Impedance 75 Ω
Insulation resistance > 5 GΩ
Rated voltage <50 V
VSWR ≤1.050/>32 dB up to 1 GHz
≤1.065/>30 dB up to 2 GHz
≤1.100/>26 dB up to 3 Ghz
Mechanical
Cable O.D. 6.3 mm
Cable retention > 30 N (Center)
Crimp size 6,47 Hex crimp (shield) acc. IEC 60803 (die designation E)
Crimp size (pin) 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Insertion force < 25 N
Lifetime > 1000 mating cycles
Wiresize
Locking device Bayonett
Cable anchoring Jacket crimping
Material
Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
Insert PTFE
Shell Brass (CuZn39Pb3)
Shell plating Optalloy®
Environmental
Temperature range -30 °C to +85 °C
Contact crimpability Complies with IEC 60803 and IEC 60352-2
