CL5
CL5

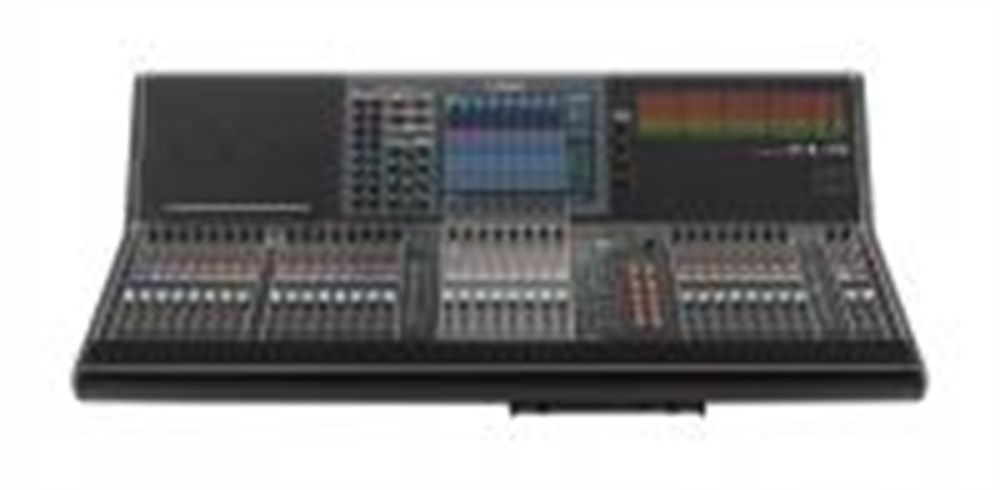

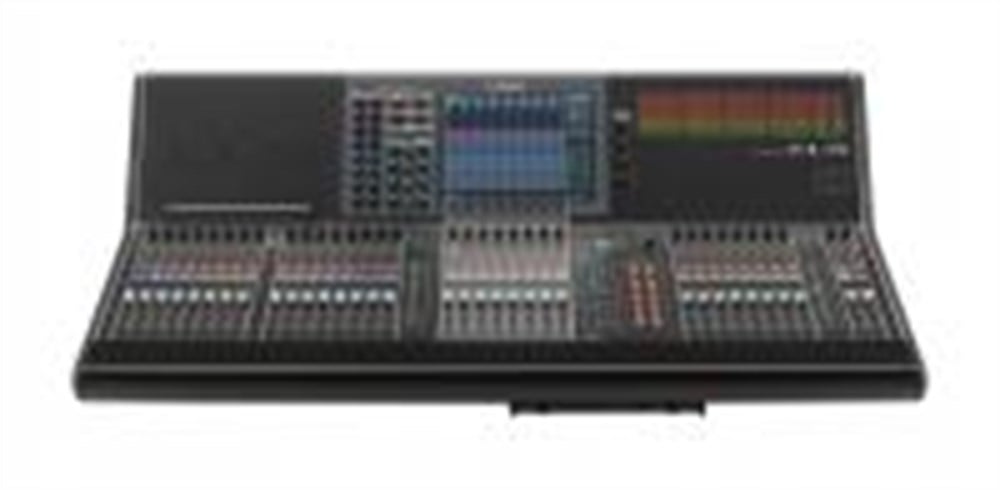

CL5 ( CL5)

Marka : Yamaha

Fiyat için

Ankara: 0312 309 52 26

Kayseri: 0352 222 00 08

Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
TEKNİK ÖZELLİKLER

Sampling frequency rate Internal 44.1kHz / 48kHz
Sampling frequency rate External 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm), 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)
Signal delay Less than 2.5ms, OMNI IN to OMNI OUT, Fs=48kHz
Total harmonic distortion Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, OMNI IN to OMNI OUT, Input Gain = Min.
Frequency response +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, OMNI IN to OMNI OUT
Dynamic range 112dB typ.: DA Converter / 108dB typ.: OMNI IN to OMNI OUT, Input Gain = Min.
Crosstalk -100dB*1, adjacent OMNI IN/OMNI OUT channels, Input Gain = Min.
Power requirements US/Canada: 120V 60Hz, Japan: 100V 50/60Hz, China: 110-240V 50/60Hz, Korea: 220V 60Hz, Other: 110-240V 50/60Hz
Power consumption 170W: Internal Power Supply / 200W: Simultaneous use of Internal PSU and External PW800W
Dimensions wxhxd 1053mm (41 1/2in) x 1053mm (41 1/2in) x 667mm (26 1/4in)
Net weight 36kg (79.4lb)
Others Temperature Range: Operating temperature range: 0 - 40℃, Storage temperature range: -20 - 60℃
