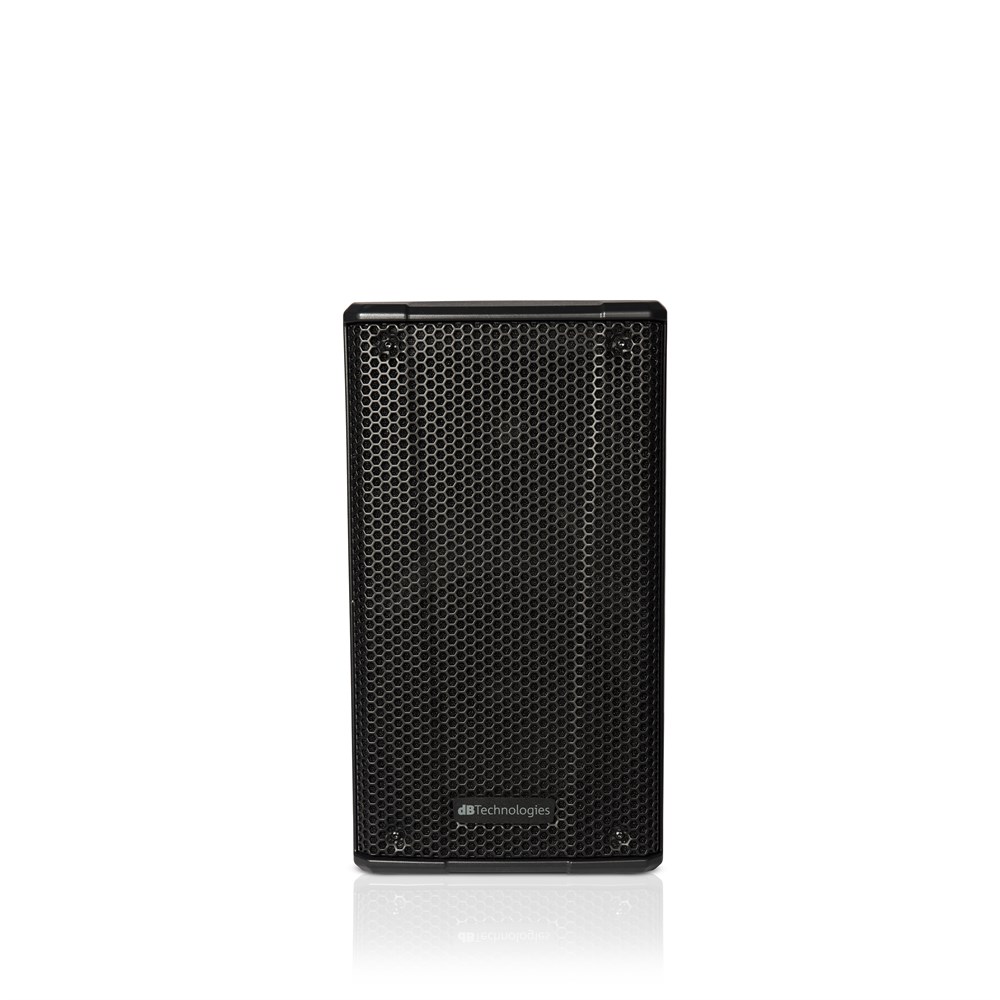

B-HYPE 8 (dBTechnologies)

Teknik Özellikleri

2 Aktif  Aktif Hoparlör

Usable Bandwidth [-10dB]65 - 20.000 Hz

Frekans Aralığı [-6 dB]70 - 19.600 Hz

Max SPL120 dB

Type HFCompression Driver

HF voice coil 1 "

LF8 "

LF voice coil 1.5 "

Crossover Frequency 2300 Hz (24 dB/oct.)

Horizontal Dispersion asymmetrical 85° up / 120°down

Vertical Dispersion 85° (+25/ -60°)

Amplifier

Amp TechnologyCustom Made

Amp ClassClass D - Passice cooling (convection)

Power Peak 260 W

Processor

ControllerDSP 28/56 bit- 48 kHz

LimiterPeak, RMS, Thermal

Controls Volume, Audio Input Sensitivity, DSP Preset

Input

Main Connection VDE

Signal Input Balanced 1xCombo IN (MIC/LINE)

SIGNAL Out (Balanced) 1xXLR OUT (LINK)
