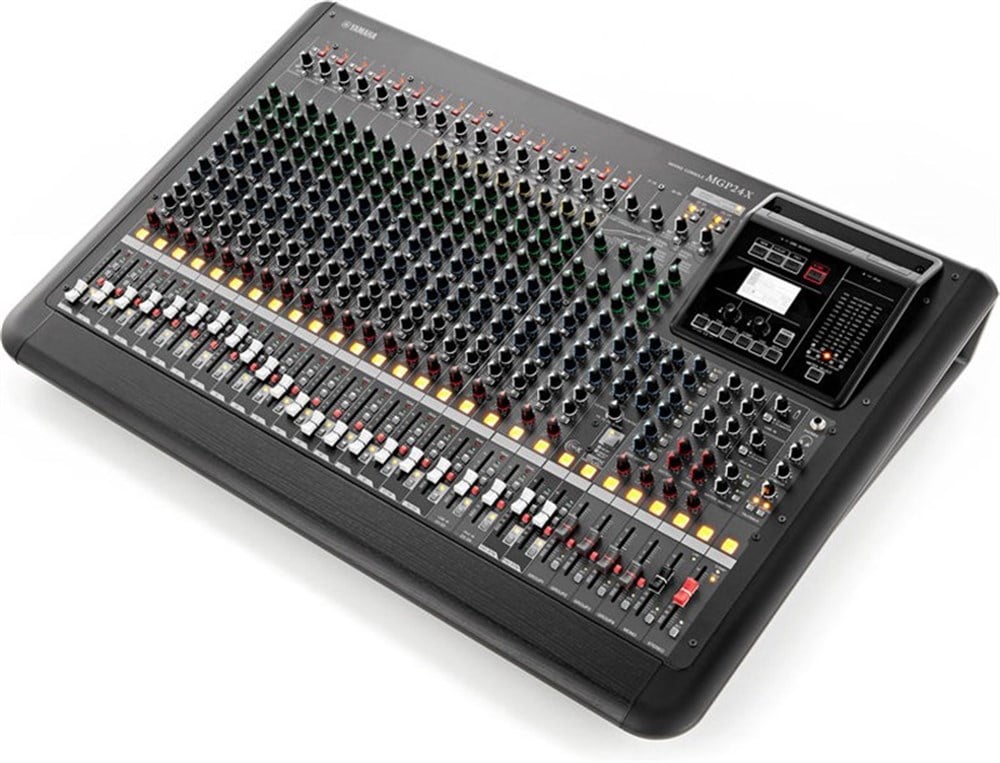

MGP-24 X (24 Kanal Deck Mikser)

Marka : Yamaha

48V Phantom Power ve her kanal için HPF ile 16 Mic Gidiş 24 Line Giriş (16 mono ve 4 stereo),6 AUX Sends + 2 FX Sends,4 GROUP



Fiyat için

Ankara: 0312 309 52 26

Kayseri: 0352 222 00 08

TEKNİK ÖZELLİKLER

Mixing channels         24 Line Inputs (16 mono and 4 stereo)

GROUP          4 GROUP Buses + ST Bus

AUX   6 AUX Sends + 2 FX Sends

MATRIX        1 Matrix out

On-board processors  FX1:REV-X(8 PROGRAM, PARAMETER control)/ FX2:SPX(16 PROGRAM, PARAMETER control)

Mic inputs       MIC: 16 (INPUTS HPF: 100Hz 12dB/oct)

Phantom power          48V phantom power per channel

Line inputs      LINE: 16 mono + 4 stereo, CH INSERT: 16 RETURN: 1 stereo

Total harmonic distortion       0.02% (20Hz-20kHz@ +14dBu)

Frequency response    +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz

Equivalent input noise           -128 dBu Equivalent Input Noise

Residual output noise -94 dBu Residual Output Noise

Crosstalk         -74dB @ 1kHz

Power requirements    100-240V 50Hz/60Hz

Power consumption    86W max

Dimensions     819mm x 169mm x 565mm

Net weight      15.5kg
