TEKNİK ÖZELLİKLER

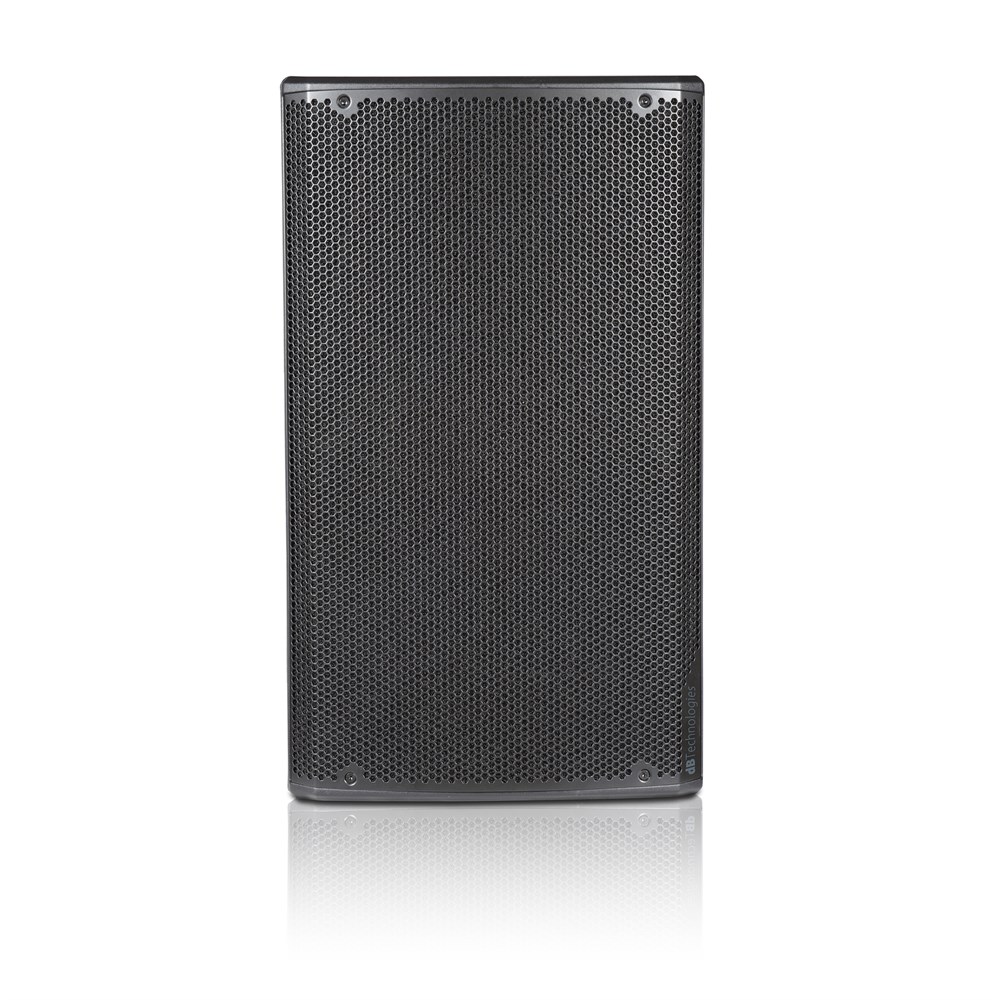

Speaker Type 2-Way Active Speaker
Frequency Response [-10dB] 50 - 20.000 Hz
Frequency Response [- 3dB] 56 - 19.000 Hz
Max SPL 130 dB
HF 1" Exit, 1.4 v.c.
Type HF Compression driver
Horizontal Directivity 100° (85° up/120° down)
Vertical Directivity 85° (+ 25°/-60°)
Horn Asymmetrical Horn
LF 15", 2" v.c.
Amp Technology Amp SMPS Power supply dual range
Amp Class Class D
RMS Power 600 W
Peak Power 1200 W
Controller DSP 56 bit
AD/DA Converter 24 bit/48 KHz
System Presets Rotary Encoder (8 Presets)
X-Over Frequency 1800 Hz
Limiter Peak, RMS, Thermal
Advanced DSP Functions Linear Phase FIR Filters
Signal Input 1xCombo (XLR/Jack 6.3 mm) MIC/Line
Signal Input 1xCombo (XLR/Jack 6.3 mm) MIC/Inst
Signal Output 1x XLR Male (CH1 Link/Mix OUT)
Signal Output Selectable
Width 420 mm (16.54 in)
Height 722 mm (28.43 in)
Depth 419 mm (16.50 in)
Weight 18.3 kg (40.34 lbs)
