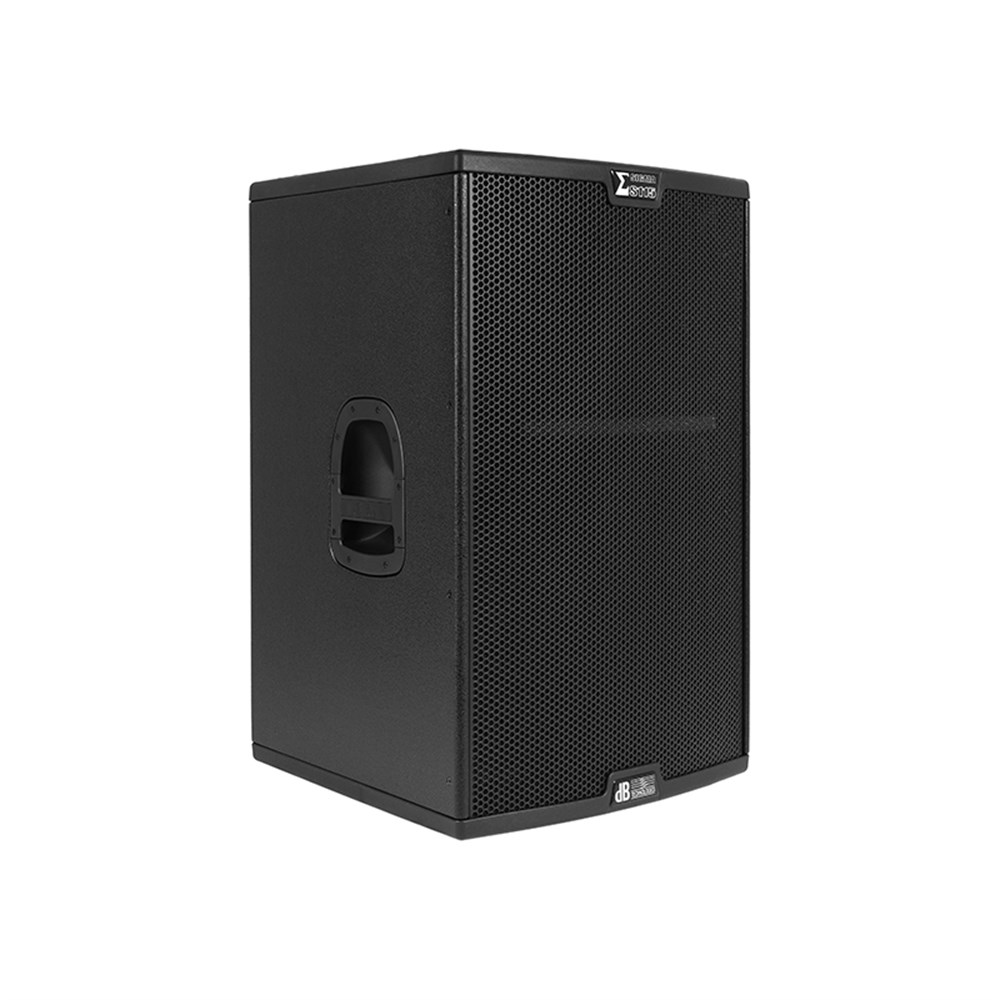

SIGMA S115 (dBTechnologies)

TEKNİK ÖZELLİKLER

Speaker Type  2-Way Active Speaker

ACOUSTICAL DATA

Frequency Response [-10dB] 46 - 20.000 Hz

Max SPL        133 dB

HF       1.4"

Type HF         Titanium Compression driver

Voice Coil HF            2.8"

Directivity      60 x 40 °

Horn    CD Horn

Rotatable Horn           YES

LF       15"

Voice Coil LF 3"

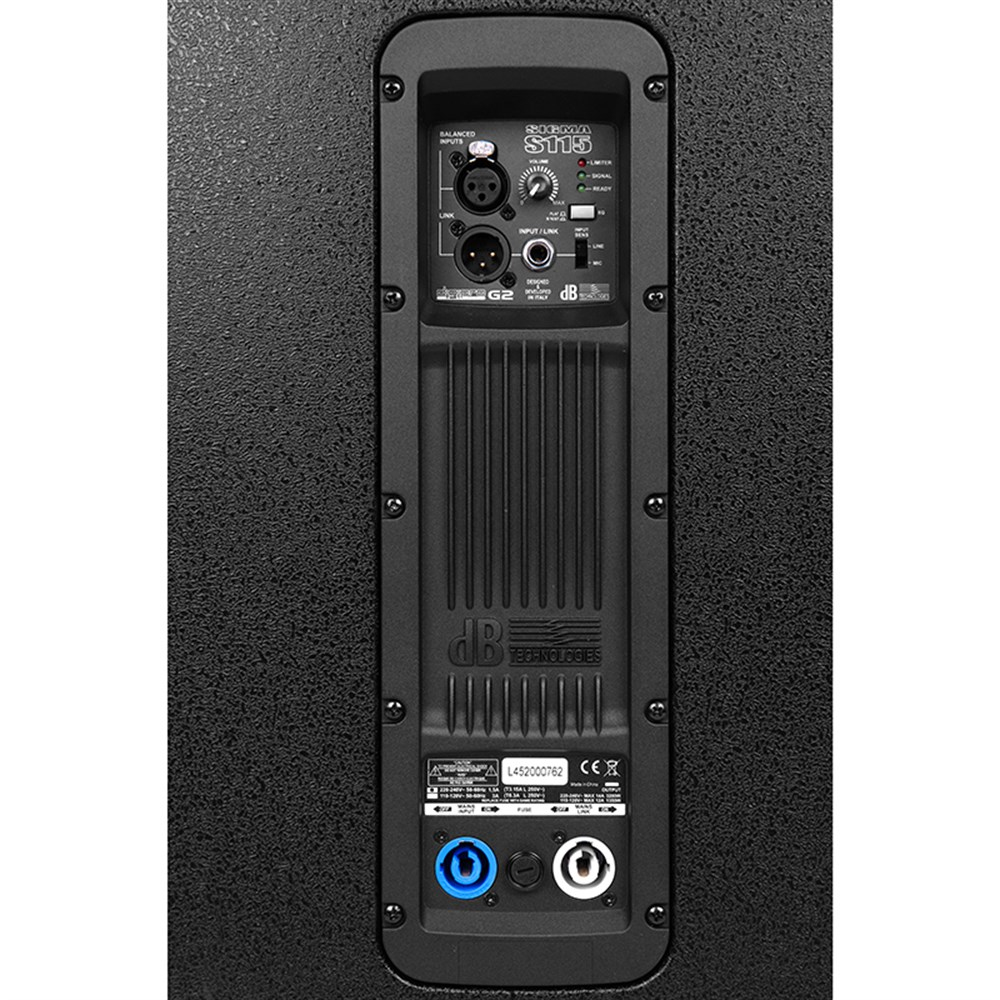

AMPLIFIER

Amp Technology        Digipro® G2

Amp Class      Class D

Power PRG    1000 W

Peak Power     2000 W

PROCESSOR

Controller       DSP 24bit/48kHz

System Presets           Flat, Boost

Limiter            Dual Active Peak, RMS, Thermal

Crossover Frequency MF-HF            1100 Hz

Slope MF-HF 24 dB/Octave

MECHANICS

Housing          Multiplex with H.E.T coating, reinforced

Dimension WxHxD   509 mm,765 mm,533 mm

Weight            33 kg
