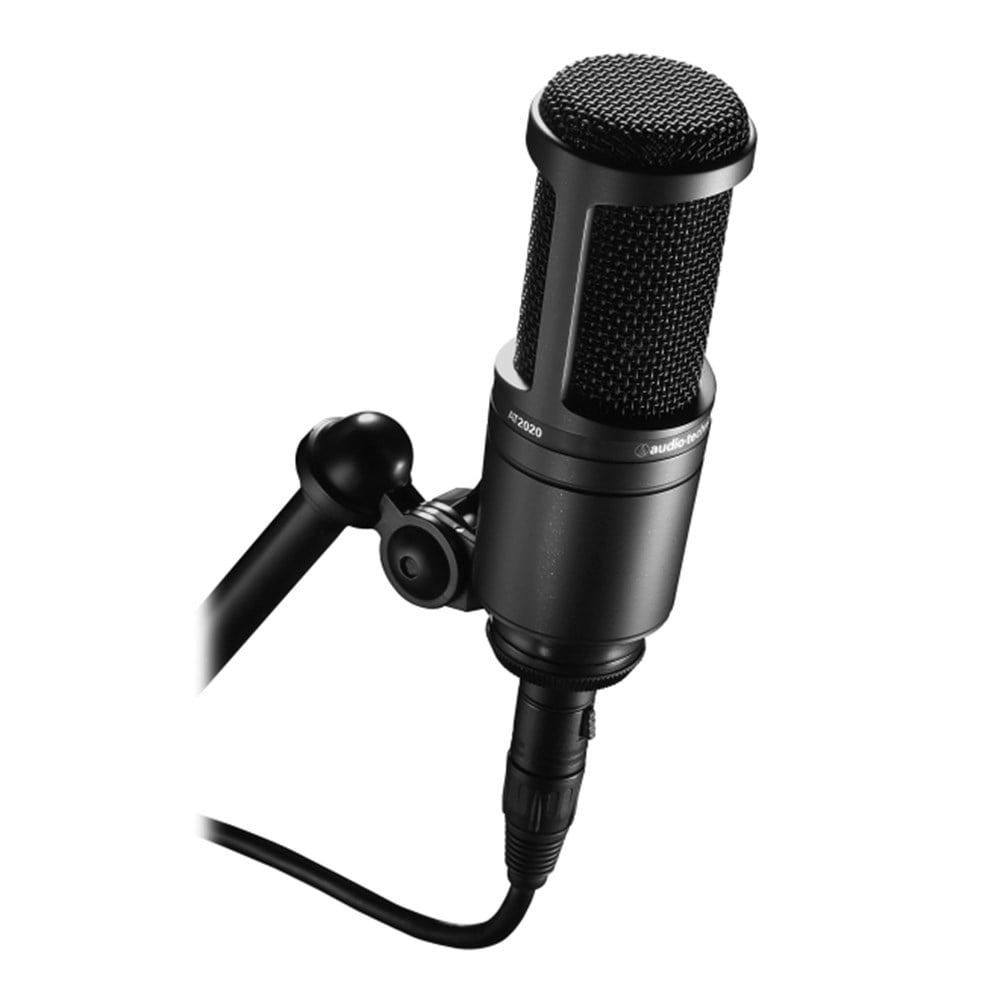

AT2020 (Audio Technica)

Cardioid Condenser Microphone  Large Diaphragm Microphone

ELEMENT Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 20-20,000 Hz
OPEN CIRCUIT SENSITIVITY –37 dB (14.1 mV) re 1V at 1 Pa
IMPEDANCE 100 ohms
MAXIMUM INPUT SOUND LEVEL 144 dB SPL, 1 kHz at 1% T.H.D.
NOISE 20 dB SPL
DYNAMIC RANGE (typical) 124 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 74 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 48V DC, 2 mA typical
WEIGHT 12.1 oz (345 g)
DIMENSIONS 6.38" (162.0 mm) long,
2.05" (52.0 mm) maximum body diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type

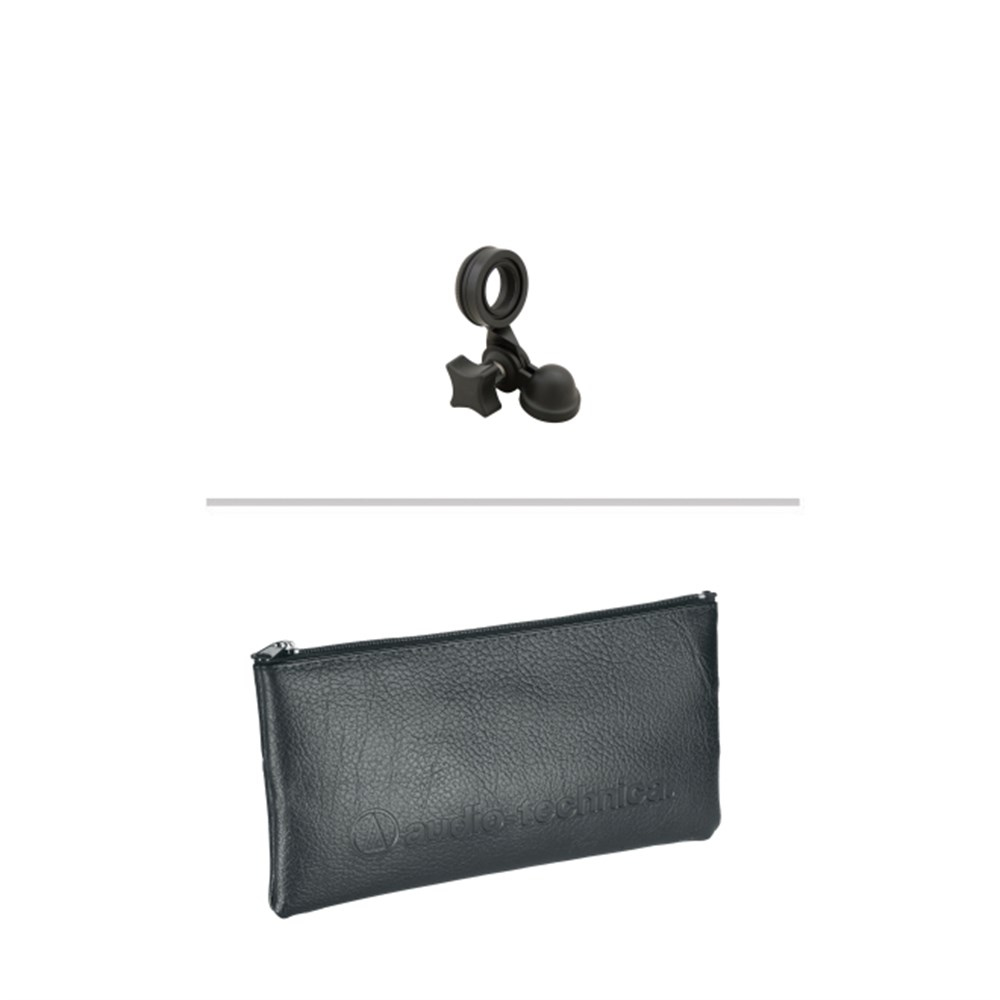

ACCESSORIES FURNISHED Stand mount for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
AUDIO-TECHNICA CASE STYLE R7
