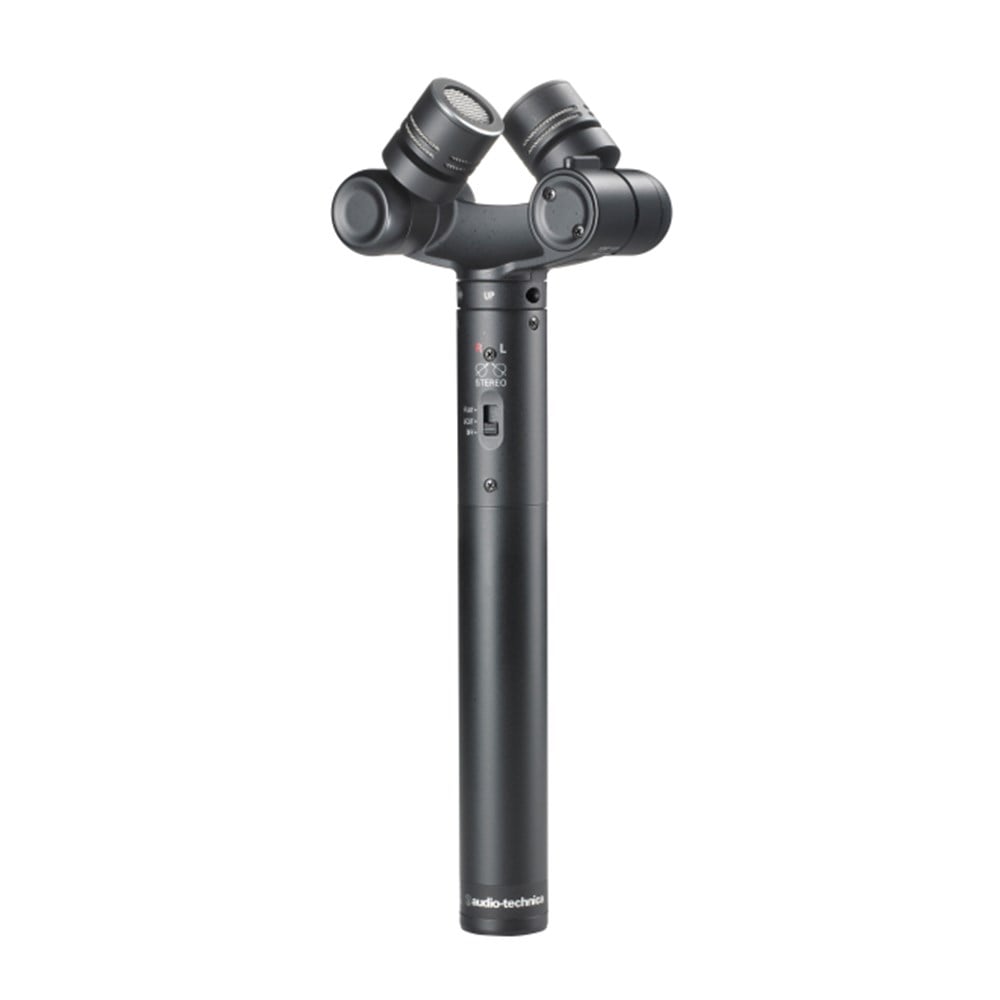

AT2022

ELEMENTS	Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN	X/Y Stereo
FREQUENCY RESPONSE	20–20,000 Hz
LOW FREQUENCY ROLL-OFF	150 Hz, 6 dB/octave
OPEN CIRCUIT SENSITIVITY	-41 dB (8.9 mV) re 1V at 1 Pa
CHANNEL BALANCE	<2.5 dB
IMPEDANCE	200 ohms
MAXIMUM INPUT SOUND LEVEL	122 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)	103 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO	75 dB, 1 kHz at 1 Pa
BATTERY TYPE	1.5V AA/UM3 WARNING: The AT2022 is designed for battery operation only. Do not attempt to use when phantom power is present. Possible damage to the microphone may result.
BATTERY CURRENT / LIFE	1.2 mA / 500 hours typical (alkaline)
SWITCH	Off, on/flat, on/roll-off
WEIGHT	270 g (9.5 oz)
DIMENSIONS	192.0 mm (7.56") long, 65.0 mm (2.56") maximum head diameter, 21.0 mm (0.83") body diameter
OUTPUT CONNECTOR	Integral 3-pin XLRM-type
CABLE	0.5 m (1.6') long, 3 conductor, shielded, vinyl-jacketed stereo cable with 3-pin XLRF-type connector at microphone end and 3.5 mm (1/8") TRS connector at output end

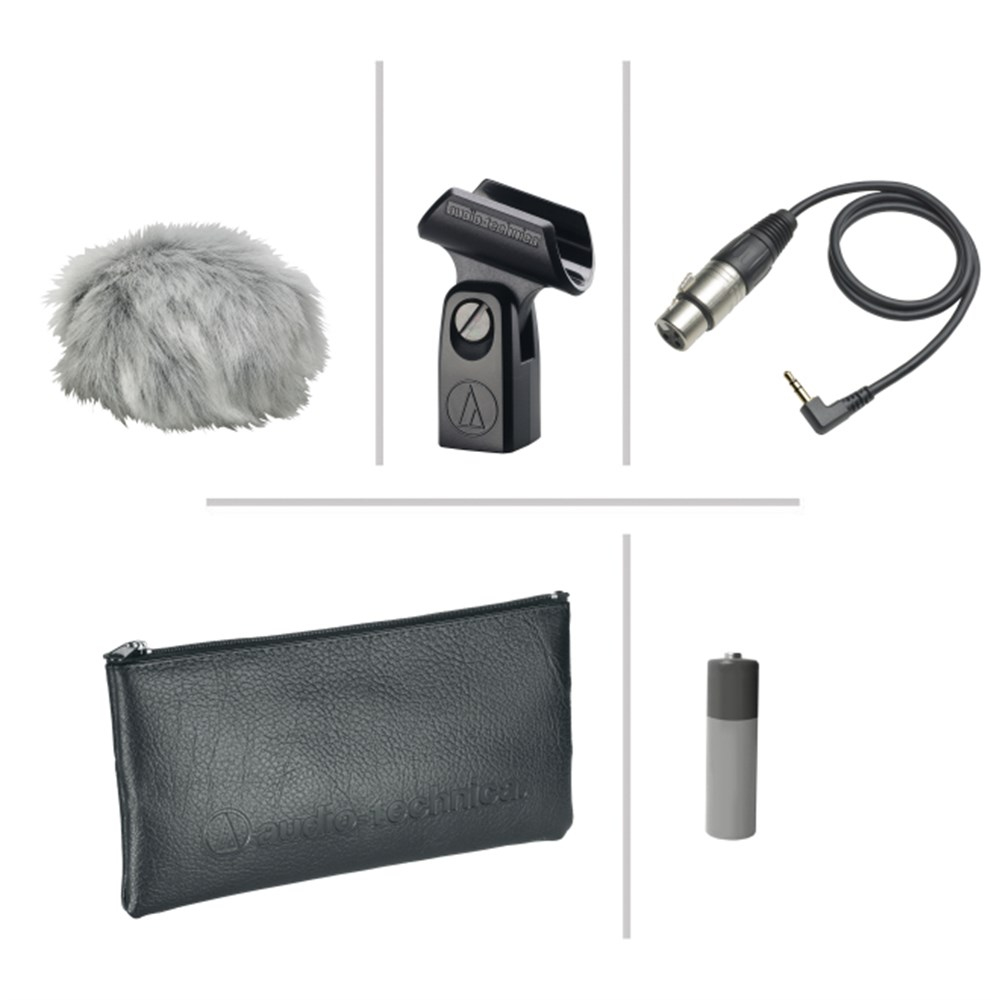

ACCESSORIES FURNISHED	AT8405a stand clamp for 5/8"-27 threaded stands; fuzzy windscreen; battery; soft protective pouch
