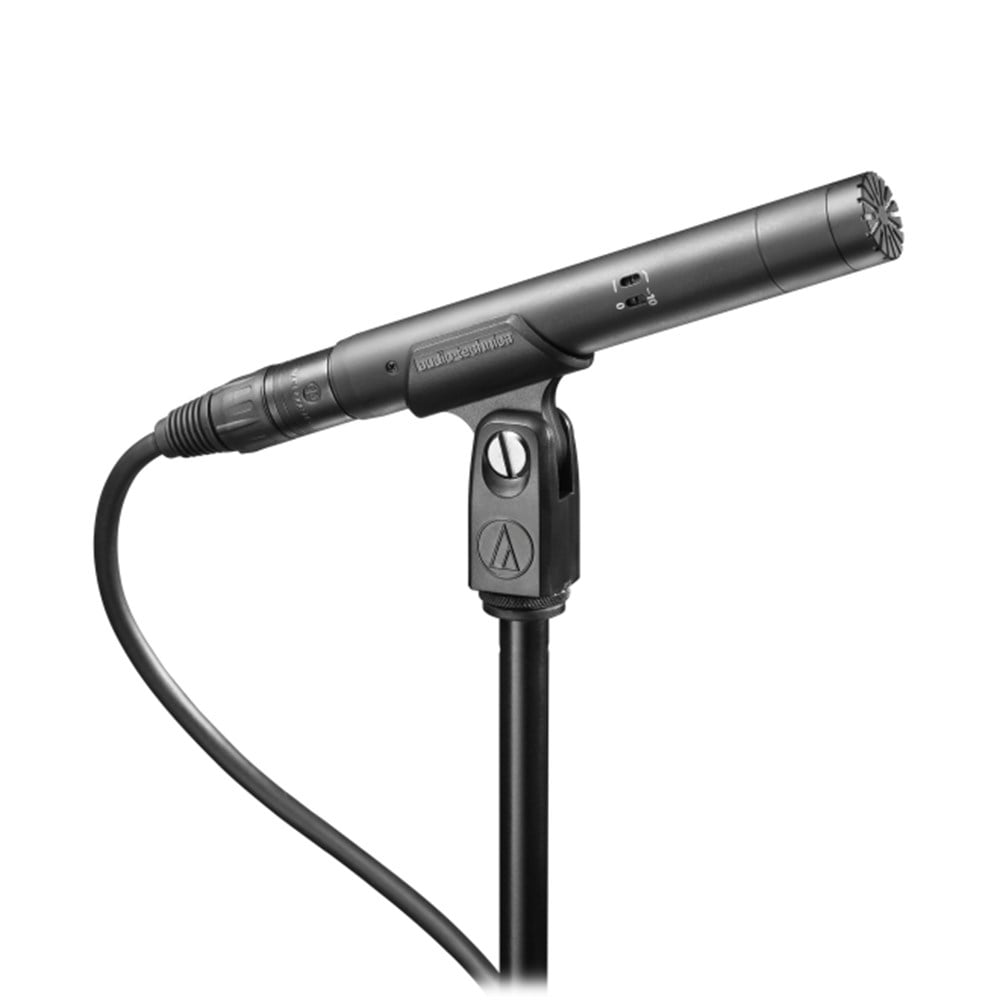

AT4022 (Audio Technica)

Omnidirectional Condenser Microphone

ELEMENT Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN Omnidirectional
FREQUENCY RESPONSE 20-20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY -34 dB (19.9 mV) re 1V at 1 Pa
IMPEDANCE 250 ohms
MAXIMUM INPUT SOUND LEVEL 146 dB SPL, 1 kHz at 1% T.H.D.;
156 dB SPL, with 10 dB pad (nominal)
NOISE 13 dB SPL
DYNAMIC RANGE (typical) 133 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 81 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 48V DC, 3.0 mA typical
SWITCHES Flat, roll-off;
10 dB pad
WEIGHT 124 g (4.4 oz)
DIMENSIONS 144.0 mm (5.67") long,
21.0 mm (0.83") maximum body diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type
ACCESSORIES FURNISHED AT8405a stand clamp for 5/8"-27 threaded stands; windscreen; protective carrying case
AUDIO-TECHNICA CASE STYLE S1
