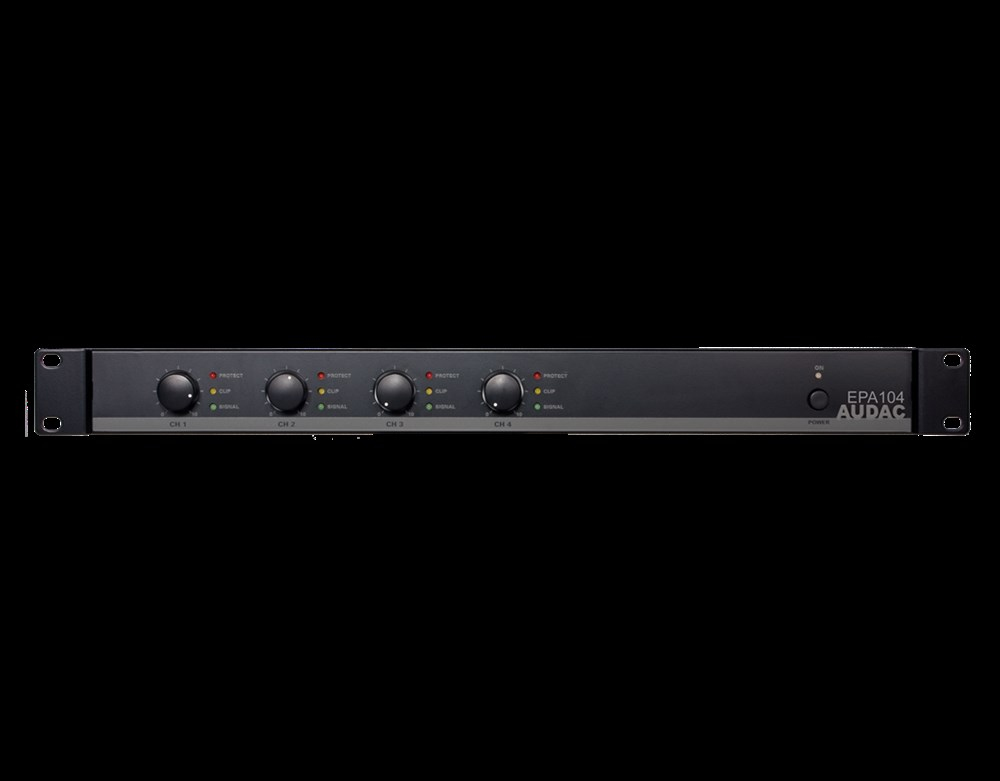

AUDAC EPA104
AUDAC EPA104
AUDAC EPA104

AUDAC EPA104 (EPA104)

Marka : AUDAC

EPA SERİSİ AMPLİFİKATÖRLER





Fiyat İçin:

Ankara: 0312 309 52 26



Kayseri: 0352 222 00 08



ÖZELLİLER

 *  AUDAC  EPA104



Signal / Noise > 90 dB
THD+N (@ 1 kHz) < 0.1% (1/2 Rated Power)
Crosstalk (@ 1 kHz) > 70 dB
Technology Class-D
Protection DC Short circuit
Over heating
Over load
Signal limiting
Cooling Convection cooled
Operating temperature 0° ~ 40° @ 95% Humidity
Frequency Response (± 3 dB) 20 Hz - 20 kHz
Power Supply Switching mode
100 ~ 240 V AC / 50 ~ 60 Hz
Consumption 188 W
Inputs Sensitivity (1W/1m) 0 dB (1V RMS)
Impedance 12 kΩ balanced
Connector 3-pin XLR female
Outputs Connector 2-pin Euro Terminal Block (Pitch - 5.08 mm)
Power Consumption Standby 0.8 Watt (30 min standby time)
RMS Power @ 4 Ω Stereo 4 x 100 W
@ 8 Ω Bridge 2 x 200 W
@ 8 Ω Stereo 4 x 50 W
PRODUCT FEATURES
Dimensions 482 x 44 x 330 mm (W x H x D)
Weight 4.500 kg
Mounting 19”
Unit height 1 HE
Construction Steel
Colours Black
