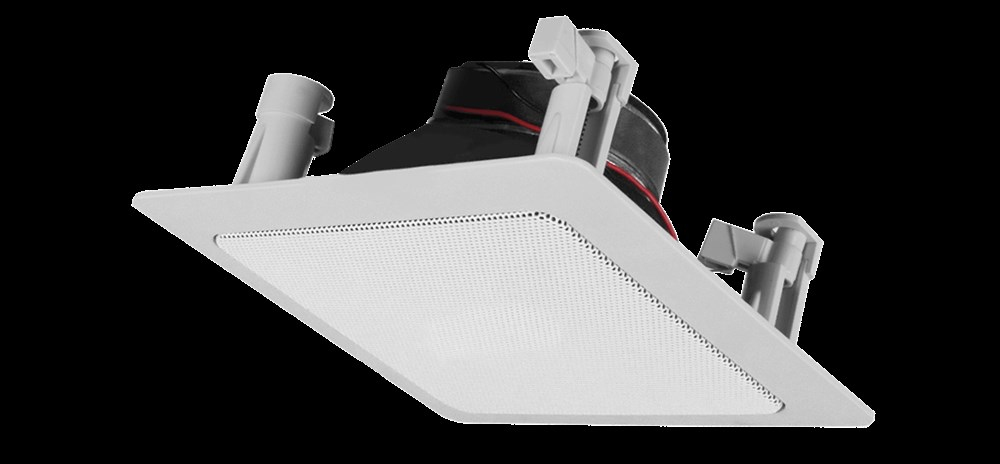

AUDAC WS524/W
AUDAC WS524/W
AUDAC WS524/W

AUDAC WS524/W (WS524/W)

Marka : AUDAC

ALÇIPAN TİPİ KARE & DİKDÖRTGEN HOPARLÖRLER 100V / 8 & 16 ohm

Fiyat için



Ankara: 0312 309 52 26





Kayseri: 0352 222 00 08



ÖZELLİLER



*  AUDAC WS524/W





Speaker type 2-way coaxial
Max. Power 60 W
RMS Power 30 W
Impedance 8 Ω (WS524/W)
16 Ω (WS524D/W)
Sensitivity (1W/1m) 92 dB
Sound Pressure (Max. W/1m) 107 dB
Connectors Fast-con™ connections
Line Transformer Tappings 1 24 W / 417 Ω
12 W / 833 Ω
6 W / 1667 Ω
Frequency Response (± 3 dB) 60 Hz - 20 kHz
Range (-10 dB) 50 Hz - 20 kHz
Crossover Type Passive built-in
Dispersion Horizontal 100°
Vertical 100°
Drivers LF 5 1/4" Woofer
MF 5 1/4" Woofer
HF 1” Dome tweeter
PRODUCT FEATURES
Dimensions 180 x 180 x 90 mm (W x H x D)
Weight 1.190 kg (WS524/W)
0.950 kg (WS524D/W)
Construction ABS
Front finish Aluminium grill
Cut-out measurement 145 x 145 mm
Built-in depth 85 mm
Mounting & handling QuickFit™ installation system (4-screw)
Colours White (RAL9010)
Accessories Included Foam inlay
Cut-out template
