DBR12
DBR12
DBR12
DBR12

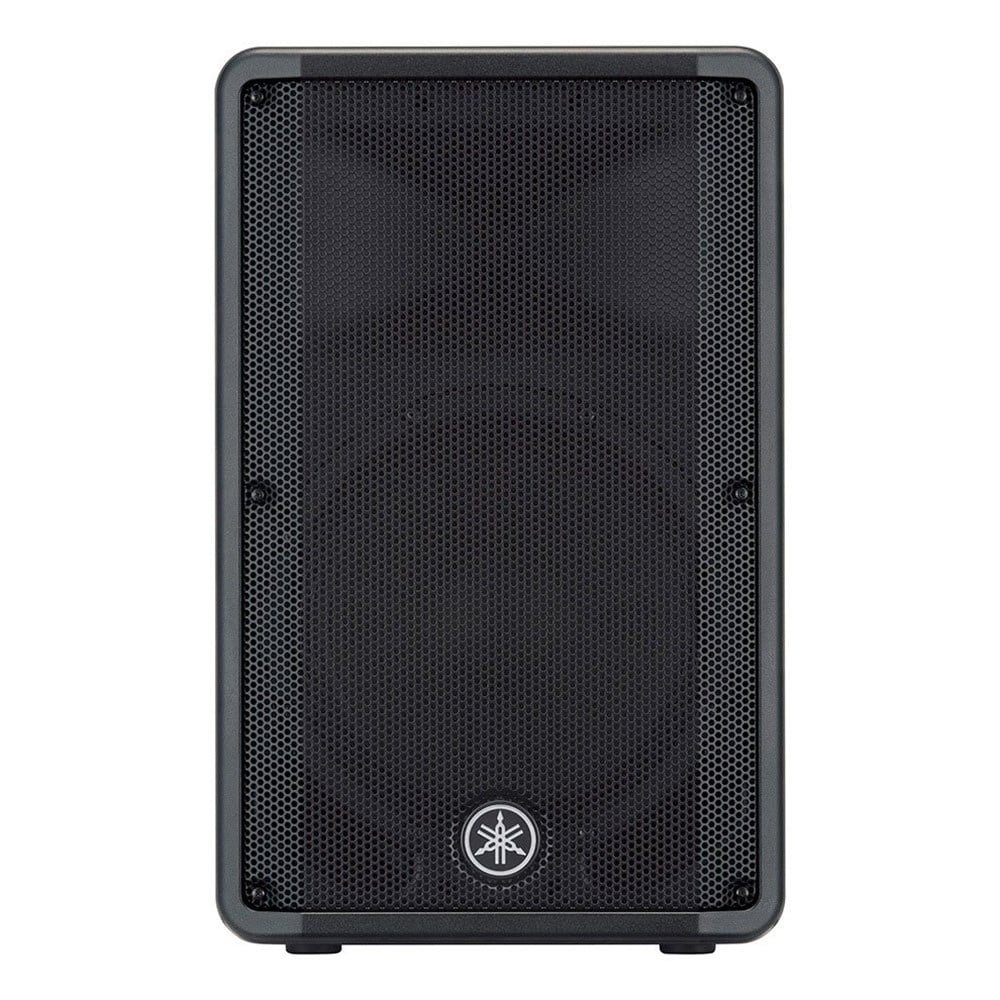

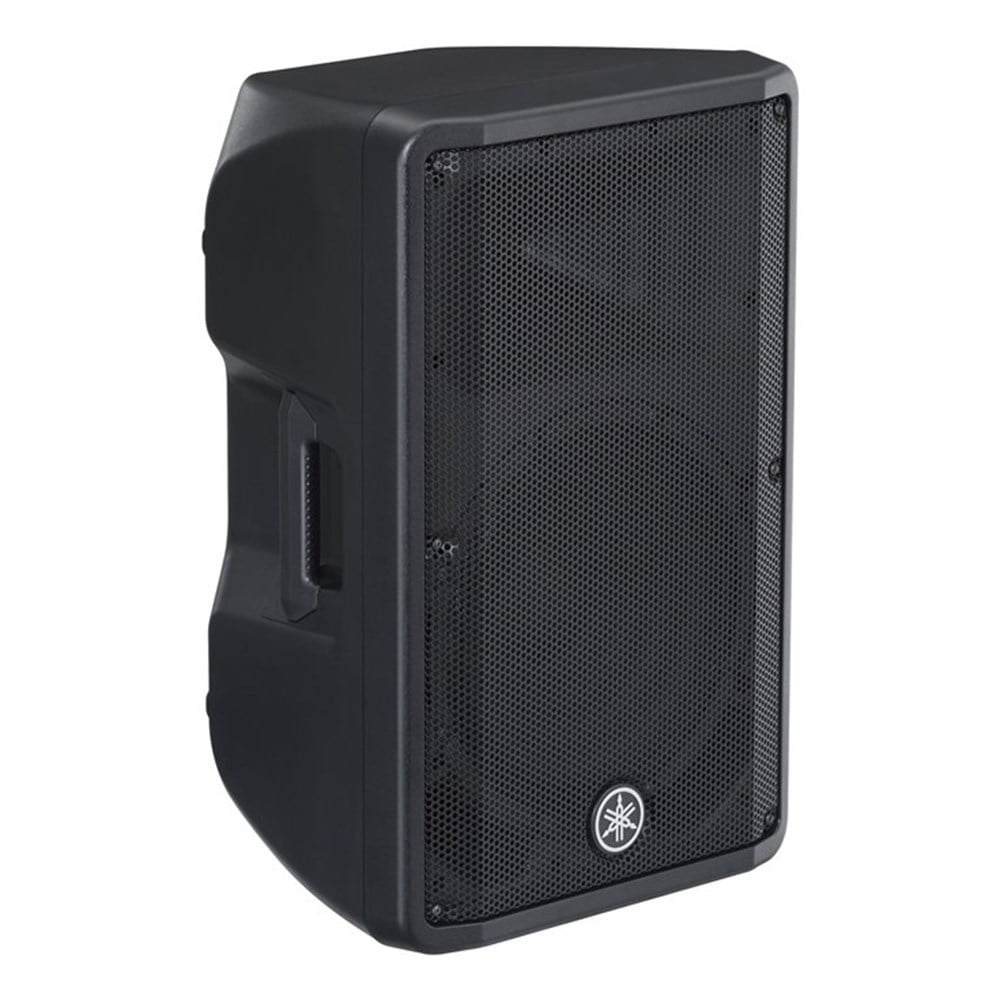

DBR12 (Yamaha)

Marka : Yamaha

12" 2-yönlü Amfili Hoparlör

Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
TEKNİK ÖZELLİKLER
Hoparlör Tipi2-way, Bi-amp powered speaker, Bass-reflex type
Frekan aralığı(-10dB)52Hz – 20kHz
Nominal coverage (H)90°
Nominal coverage (V)60°
Components (LF)Diameter:12" cone, Voice Coil:2", Magnet:Ferrite
Components (HF)Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
Crossover2.1kHz: FIR-X tuning™ (linear phase FIR filter)
Output powerDynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
Maximum output level (1m; on axis)131dB SPL

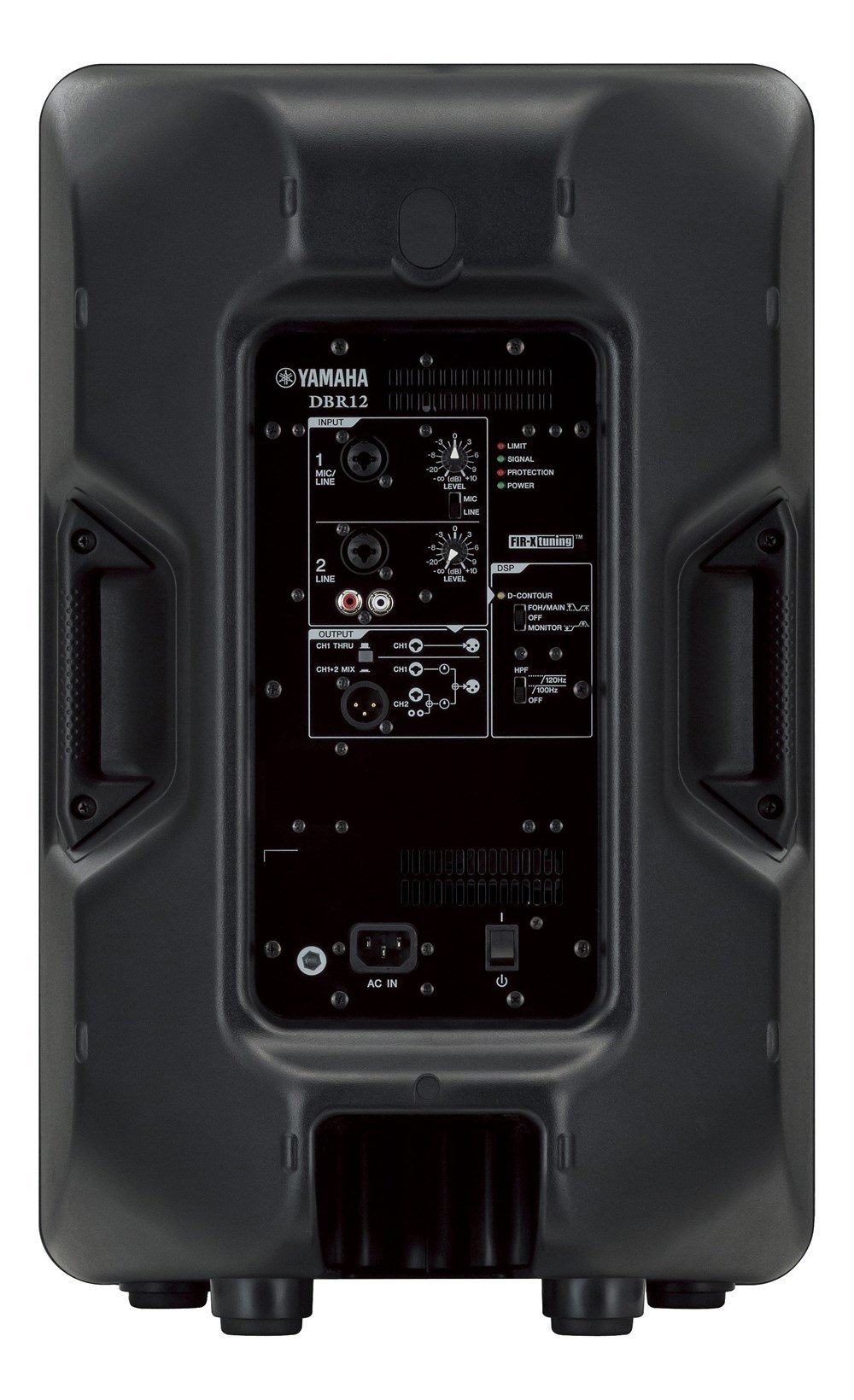

I/O connectorsINPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
ProcessorsD-CONTOUR: FOH/MAIN, MONITOR, OFF
Heat dissipationFan cooling, 4 speeds
Power requirements100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
Power consumption74W(1/8 Power Consumption), 18W(Idle)
Cabinet materialPlastic
FinishBlack
HandleSide x 2
Flying and mounting hardwareBottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
Pole socket35mm (Bottom x 1)
Boyutlar376mm x 601mm x 348mm
Net kilo15.8 kg
