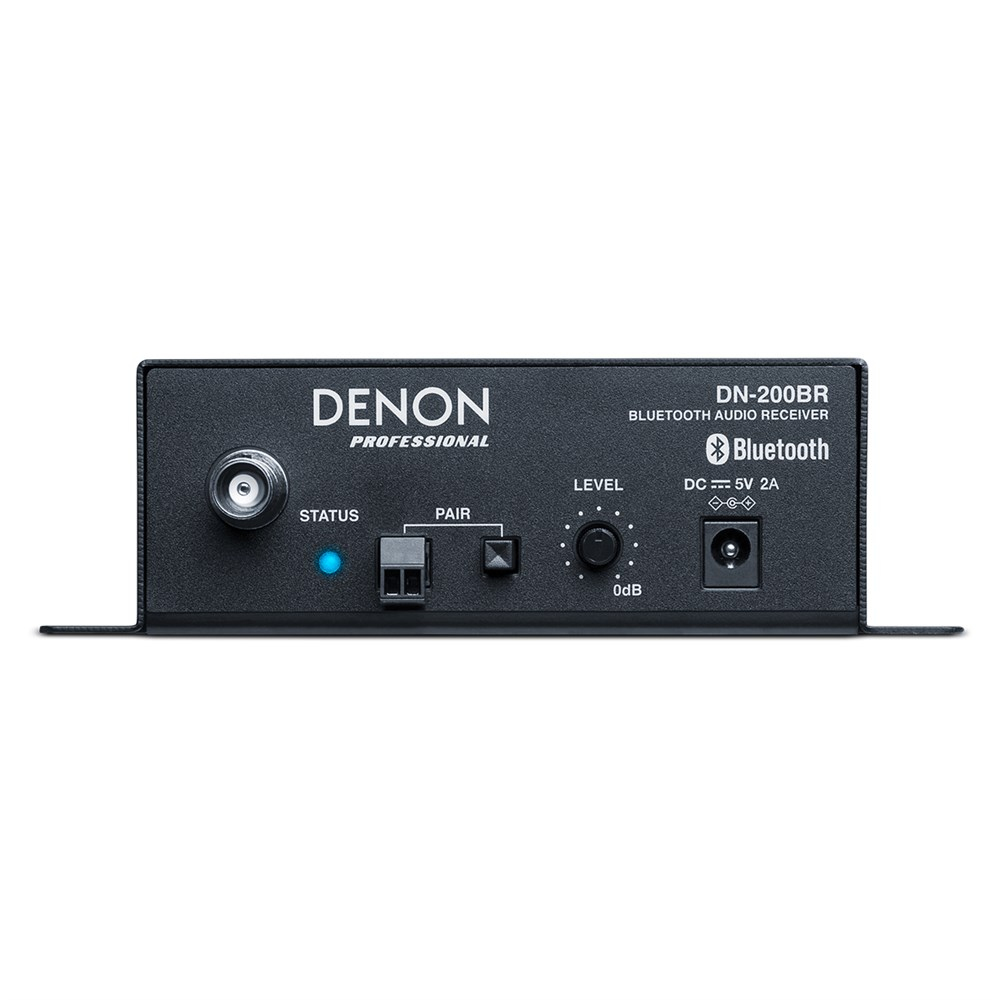

DN-200 BR (DN-200 BR)

Audio Specification

• Frequency response: 20 Hz – 20 KHz (+1 dBu)
• Signal-to-Noise Ratio: > 75 dB
• THD: < 0.01%

Bluetooth Specifications

• Version: 2.1 + Enhanced Data Rate (EDR)
• Maximum Receiver Power: Class 2, 4 dBm
• Receiver Frequency: 2.4 GHz – 2.480 GHz
• Receiver Range: Up to 82 ft. / 25 m
• Receiver Sensitivity: -80 dBm @ 0.1% BER
• Supported Codec: SBC, MP3, AAC, aptX

• Supported Profiles

  • AVCTP 1.0, AVRCP 1.0, GAVDP 1.2, AVDTP 1.0, A2DP 1.2, Hands-Free Profile (HFP) 1.5, Headset Profile (HSP) 1.1

Analog Output

• Balanced (XLR): +4 dBu (+1 dB)
• Unbalanced (1/4” / 6.35mm): -2 dBu (+1 dB)

Environmental

• Operation Temperature: 41–95°F / 5–35°C

General

• Power Adapter: 5 V DC, 3 A, center-positive
• Input Voltage: 100–240 V AC, 50/60 Hz
• Dimensions (width x depth x height): 5.8” x 4.6” x 1.8” (149 x 117 x 45 mm)
• Weight: 1.3 lbs. (0.6kg)
