DN-312 X (DN-312 X)

ÖZELLİKLER

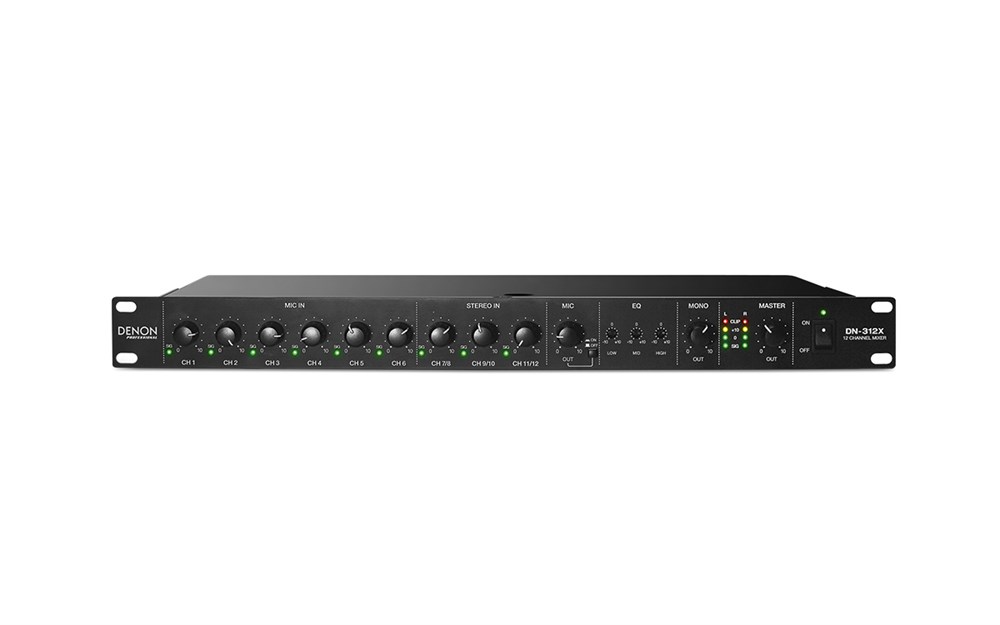

DENON DN-312 X

12 Kanal Line Mikser - with Priority

• Microphone Input: 6 Balanced XLR Connectors (Channels 1–6)
• Frequency Response: 20 Hz - 22 kHz
• THD+N: < 0.03% @ 1 kHz
• Sensitivity: -40 dBu
• Maximum Input: -19 dBu

• 60 dB (Mic Input to Line Out, Mic Out & Mono Out)
• 50 dB (Mic Input to Rec Out)
• Signal-to-Noise Ratio: > 103 dB
• Phantom Power: 18–21 V, switch control

• Frequency Response: 20 Hz - 22 kHz
• THD+N: < 0.03% @ 1 kHz
• Sensitivity: 0 dBu
• Maximum Input: +21 dBu

• 20 dB (Mic Input to Line Out, Mic Out & Mono Out)
• 10 dB (Mic Input to Rec Out)
• Signal-to-Noise Ratio: > 103 dB

• Frequency Response: 20 Hz - 22 kHz
• THD+N: < 0.03% @ 1 kHz
• Sensitivity: +10 dBu
• Maximum Input: +21 dBu

• 10 dB (Line Input to Line Out)
• 0 dB (Line Input to Rec Out)
• 4 dB (Line Input to Mono Out)
• Signal-to-Noise Ratio: > 103 dB

• Mic/Line Input: 1.4 kΩ
• Line Input: > 10 kΩ
• All Outputs: 120 Ω

• High: +15 dB @ 12 kHz
• Mid: +12 dB @ 2.5 kHz
• Low: +15 dB @ 80 Hz

• < -70 dB @ 1 kHz (Channels 1–6)
• < -68 dB @ 1 kHz (Channels 7/8–11/12)

• < -82 dB @ 1 kHz

• Line Output: 0 dBu (+2 dBu), balanced
• Mic Output, Mono Output: 0 dBu (+2 dBu), unbalanced
• Maximum Output: +21 dBu balanced/unbalanced, 1/4” (6.35 mm) jacks
• Noise (Bus): < -83 dB @ 20 Hz – 22 kHz

• Power connection: IEC
• Input Voltage: 100V~, 110-120V~, 50/60Hz; 220-240V~, 50/60Hz or DC24V
• Dimensions: (width x depth x height): 19.0” x 7.7” x 1.7” (483 x 195 x 44 mm)
• Weight: 6.4 lbs (2.9 kg)
