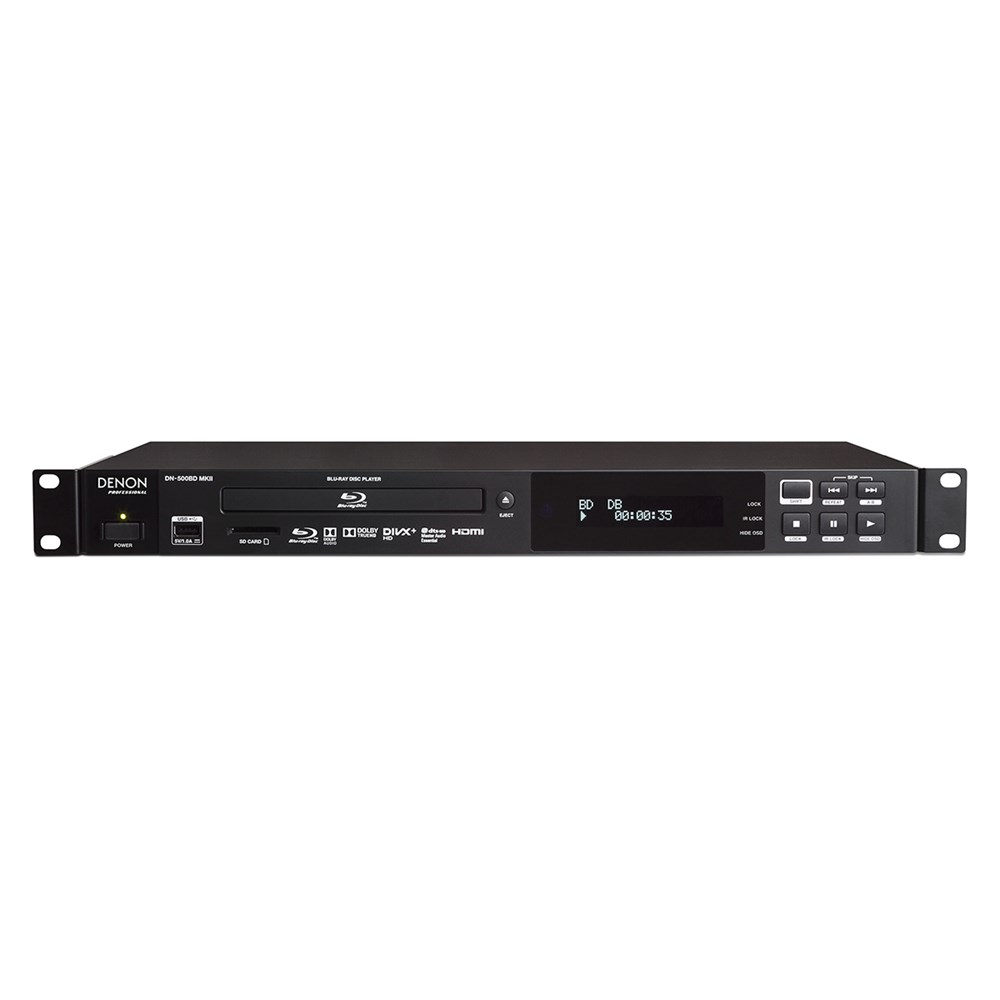

DENON DN-500 BDMKII

Denon Blu-ray Disc, DVD, CD, SD, USB Medya Oynatıcı (Extron IP Bağlantısı Uyumlu)



System





  • Digital media player (Blu-ray Disc, DVD, CD, SD, USB device [mass storage class]) AVCHD playback format



Supported Disc Formats
  • Blu-ray Disc: BD25, BD50, BD-ROM, BD-R, BD-RE
  • DVD: DVD, DVD+R, DVD-R, DVD+RW, DVD-RW
  • CD: CD, CD-R, CD-RW, DTS Music Disc (DTS Audio CD, 5.1 Music Disc), HDCD, Super Video CD (SVCD), Video CD (VCD)



Supported File Formats
  • Video: .3gp, .asf, .avi, .dat, .divx, .mkv, .mov, .mp4, .mpg, .m2ts, .ogm, .rmvb, .tp, .ts, .wmv
  • Subtitles: .ass, .smi, .srt, .ssa, .sub
  • Audio: .ape, .flac, .m4a (AAC), .mp3, .wav, .wma
  • Picture: .gif, .jpg (or .jpeg), .png



Supported File Systems
  • FAT16, FAT32, NTFS
  • SD card with 128GB total capacity
  • USB drive (mass storage class) with 2 TB total capacity



Video
  • Resolutions Auto, 480i/576i, 480p/576p, 720p, 1080i, 1080p
  • Aspect Ratios 16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 Letterbox
  • System NTSC, PAL, Multi (if supported by TV)
  • HDMI Color Space: RGB PC Level, RGB Video Level, YCbCr (4:4:4), YCbCr 4:2:2



Decoding
  • Video: DivX 3, 4, 5, 6; DivX HD; MPEG-1; MPEG-2; MPEG-4; MPEG-4 AVC (H.264); VC-1 (Windows Media Video); Xvid
  • Audio: AAC; Dolby Digital; Dolby Digital Plus; Dolby TrueHD; DTS Digital Surround; DTS-HD; WMA



Audio

Analog Outputs
  • Output Level (balanced XLR): +4 dBu = +1.786 dBV
  • Output Level (unbalanced RCA): +6 dBV



Digital Output
  • Output Level (coaxial): 0.5V, 75Ω
  • Signal Format: AES/EBU



Surround Audio
  • DTS-Master Audio, DTS-HD High Resolution Audio, DTS Digital Surround, Dolby TrueHD, Dolby Digital (AC-3), Dolby Digital Plus (7.1ch)


  • Frequency Response: 20 Hz – 20 kHz (+0.5 dB)
  • Signal-to-Noise Ratio: > 100 dB (A-weighted)
  • Total Harmonic Distortion: < 0.05%
  • Dynamic Range: > 100 dB (A-weighted)
  • Headroom: 6 dB
  • Channel Separation: > 90 dB



Outputs
  • (2) XLR audio outputs (L/R, balanced)
  • (2) RCA audio outputs (L/R, unbalanced)
  • (8) RCA audio outputs (7.1 surround sound)
  • (1) Coaxial digital audio/visual output
  • (1) HDMI audio/visual output
  • (1) RJ-45 LAN port
  • (1) 9-pin D-Sub female RS-232C port
  • (1) IEC power connection



Communication

Remote Control
  • Infrared protocol, > 200 mV transmission output level



Serial Remote
  • Connector: 9-pin D-Sub female, RS-232C
  • Mode: Full duplex
  • Baud Rate: 9600 or 38400 bps (selectable)



Ethernet
  • Connector: LAN port
  • Standards: Ethernet (10 Mbps), Fast Ethernet (100 Mbps)



Environmental Conditions
  • Operating temperature: 41 – 95 °F (5 – 35 °C)
  • Operating humidity: 25 – 85%, no condensation



General

Power
  • Connection: IEC
  • Requirement: 100–240 VAC, 50/60 Hz
  • Consumption: 15 W typical, < 0.5 W standby
  • Dimensions (width x depth x height, with rack ears 19.00” x 10.75” x 1.73” (483 mm x 273 mm x 44 mm)
  • Weight (with rack ears) 5.9 lbs. (2.7 kg)





Extron IP Link Compatible: Extron has developed and tested an IP Link driver for this product. Using IP Link technology, this device can be monitored, controlled and supported over a standard Ethernet network. In order to enable IP Link network connectivity and control, you must install and configure an IP Link-enabled device such as a MediaLink controller or IP Link Ethernet control interface. For more information, please see www.extron.com/driverdownloads.


  •
