DENON PROFESSIONAL AUDIO & VIDEO PLAYERS

ÖZELLİKLER

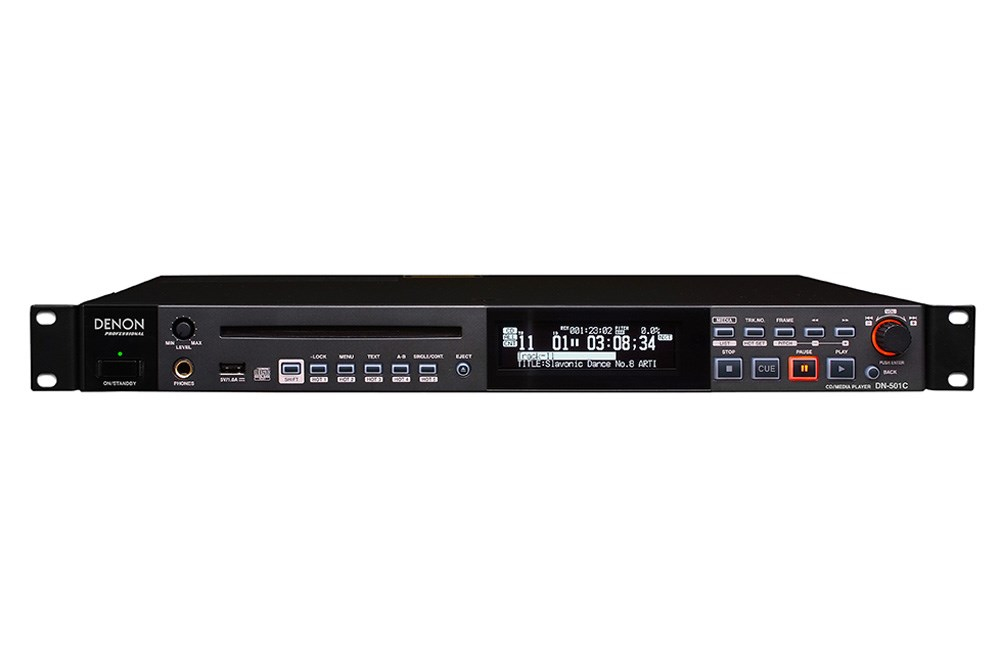

DENON DN-501 CEM





CD / Media Player with Digital Audio Outputs and RS-232c

Digital Audio System

  • System: CD/Media Player
  • Compatible media: CD Media, USB flash memory, USB HDD, iPod/iPhone
  • Playable formats, file systems
  • CD: CD-DA (CD TEXT), CD-ROM (ISO9660)
  • USB: FAT16/FAT32/HFS+



Playable WAV Format

  • Extension: WAV
  • Resolution: 16 bit, 24 bit
  • Sampling frequency: 96, 48, 44.1 kHz



Playable AIFF Format

  • Extension: AIFF, AIF
  • Resolution: 16 bit, 24 bit
  • Sampling frequency: 96, 48, 44.1 kHz



Playable MP3 Format

  • Extension: MP3
  • Bit rate: 32 – 320 kbps and VBR
  • Sampling frequency: 48, 44.1 kHz



Playable AAC Format

  • Extension: M4A
  • Compression method: AAC-LC
  • Bit rate: 64 – 320 kbps and VBR
  • Sampling frequency: 48, 44.1 kHz



Number of channels: 2 (stereo), 1 (mono)

  • Audio frequency characteristics: 20 Hz - 20 kHz (±0.5 dB)
  • S/N ratio: More than 105 dB (A-Weighted)
  • Total harmonic distortion: Less than 0.005 %
  • Dynamic range: More than 105 dB (for 24 bit WAV playback)
  • Channel separation: Less than –106 dB
  • Variable pitch width: –16 % – +16 % (0.1% step)
  • Variable Output trim adjustment width: ±2.0dB (0.1dB step)



Output

  • 0 dBu=0.775 Vrms
  • 0 dBV=1.0 Vrms
  • BALANCED ANALOG OUT L/R
  • Type: XLR (1:GND, 2:Hot, 3:Cold)
  • Load impedance: Over 600 Ω/ohms
  • Output level: +6dBV (+8.23dBu)(600Ω/ohms Load)
  • Output level setting: +24dBu, +20dBu, +18dBu,+6dBV (0dBFS Reference)



UNBALANCED ANALOG OUT L/R

  • Type: RCA terminal
  • Load: impedance Over 10 kΩ/kohms
  • Output level: +6dBV (10kΩ/kohms Load)
  • Output level setting: +10dBV, +6dBV, +4dBV (0dBFS Reference)



BALANCED DIGITAL OUT

  • Type: XLR(1:GND, 2:Hot, 3:Cold)
  • Output impedance: 110 Ω/ohms
  • Format: IEC-60958(AES/EBU)



UNBALANCED DIGITAL OUT

  • Type RCA terminal
  • Output impedance: 75 Ω/ohms
  • Standard output level: 0.5 Vp-p
  • Format: IEC-60958(COAXIAL)



HEADPHONE OUT

  • 20 mW/32 Ω/ohms





Others

  • Maximum storage capacity: Up to 2 TB
  • Maximum file size: 2 GB
  • Maximum number of files: 2000 files (for 1 folder)
  • Maximum number of folders: 1000 folders
  • Maximum number of folder hierarchies: 8 (under the root directory)
  • Maximum file name length: 255 characters
  • Maximum folder name length: 255 characters



Environmental Conditions

  • Operating temperature: 5 – 35 °C
  • Operating humidity: 25 – 85 %, no condensation
  • Storage temperature: –20 – 60 °C



General

  • Power supply
  • AC 120 V, 60 Hz (U.S.A and Canada models)
  • AC 230 V, 50/60 Hz (European, U.K and Asia/Pacific models)



Power consumption

  • 30 W
  • 0.4 W (standby)



Dimensions (width x depth x height, with rack ears)

  • 19.00” x 12.78” x 1.73” (483 mm x 325 mm x 44 mm)



Weight

  • 8 lbs 13.10 oz (4,0 kg)
