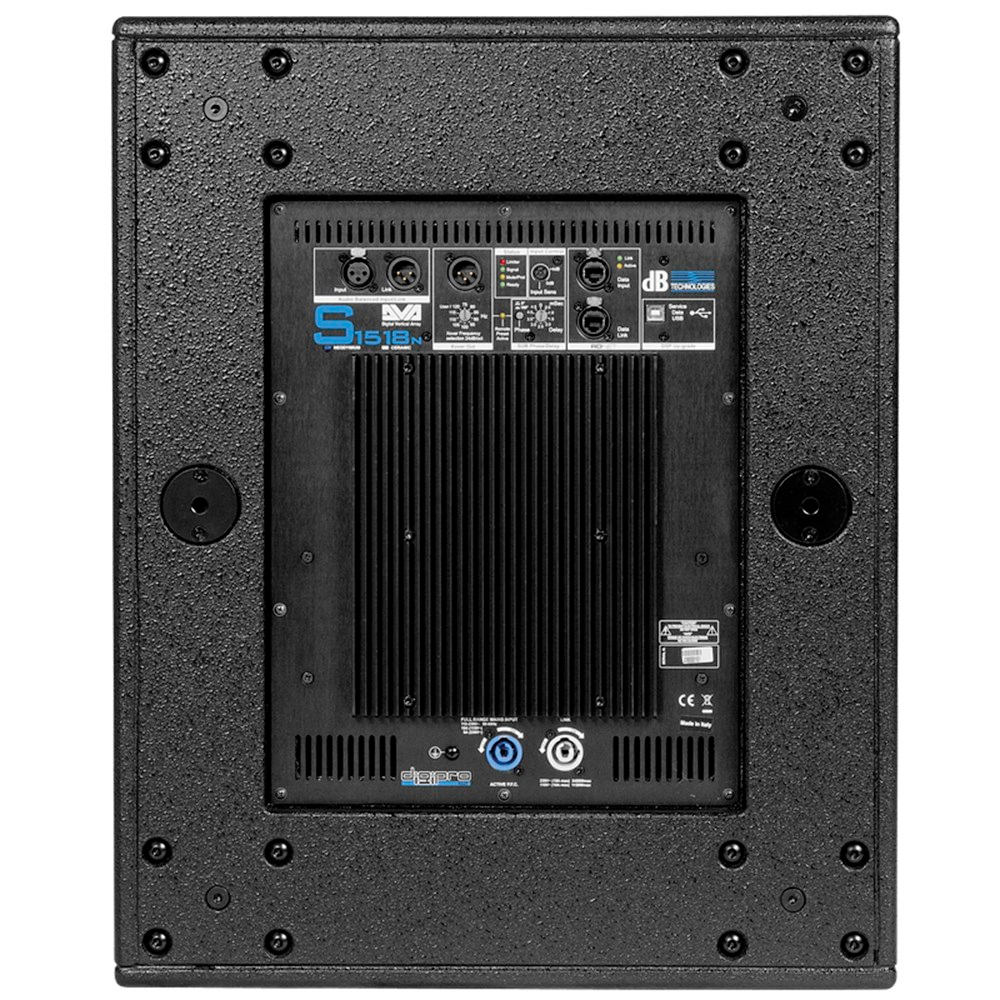

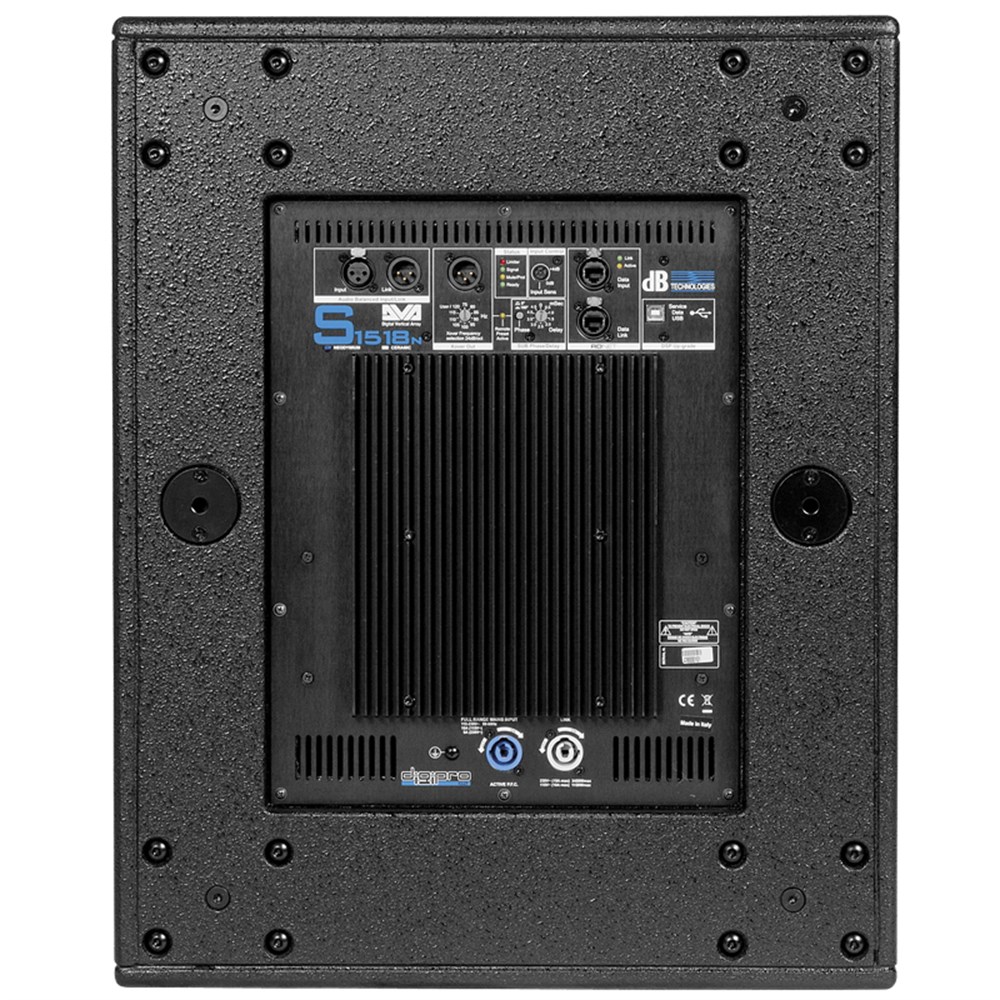

DVA S1518N (DVA S1518N)

TEKNİK ÖZELLİKLER

Speaker Type     Active Bandpass Subwoofer

ACOUSTICAL DATA

Frequency Response [+/- 3dB]   39 - 120 Hz

Max SPL              138 dB

Directivity           Omnidirectional, Cardiod Option with DSP setup

LF           18 "

Voice Coil LF      4 "

AMPLIFIER

Amp Technology             Digipro® G2

Amp Class           Class D

Power Supply     1.5 kW SMPS

LF Amp  1500 W RMS

Cooling Convection

PROCESSOR

Controller           DSP 56 bit

AD/DA Converter            DSP 24 bit/48 kHz

System Presets  X-Over,Delay

Phase    0, 180 °

Limiter  RMS, Peak, Thermal

Delay Option      0-4.5 ms internal

Crossover Frequency LF-MF        75-120Hz | steps of 5Hz

LF-Xover out slope          24 dB/Octave

MECHANICS

Housing               Multiplex birch plywood

Housing Design Rectangular

Dimension WxHxD          515 mm.640 mm. 720 mm

Weight  46 kg.
