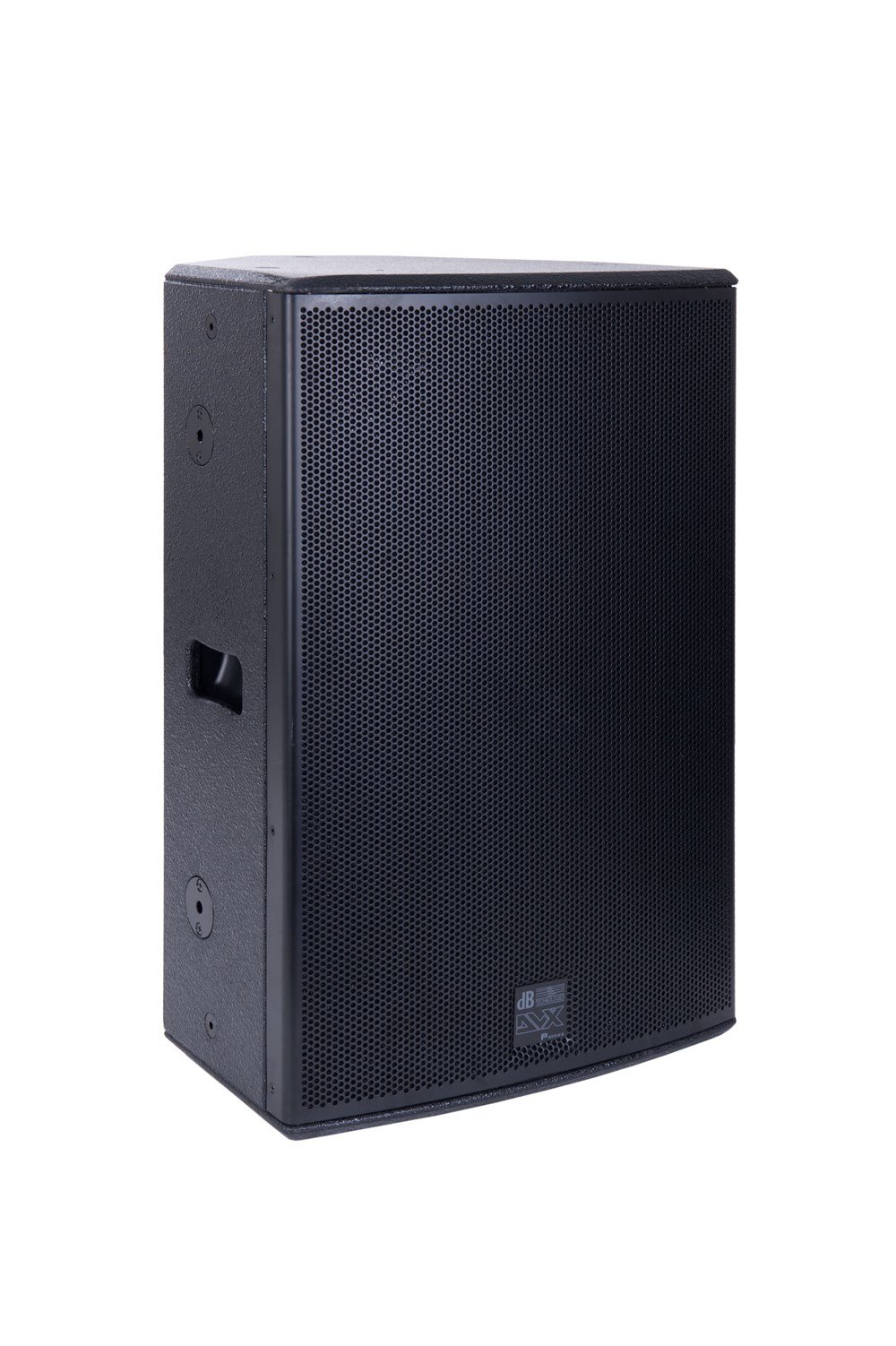

DVX P15 (dBTechnologies)

TEKNİK ÖZELLİKLER

Hopalör Tipi: 2-Yollu Pasif Hoparlör

Nominal Power Rating:         500 W/RMS

Program Power Rating:         1000 W

Impedance:     8 Ohms

Sensitivity 1W@1m: 100 dB

Frekans Aralığı[+/- 3dB]:     70 - 19.000 Hz

Max SPL:       133 dB

HF:      1.4"

Voice Coil HF:          2.5 “

Driver Protection:      PTC

Directivity:     90x40 °

Horn:  CD Horn Aluminium

Rotatable Horn:         YES

Crossover Frequency (passive):        1400 Hz

LF:      15 "

Voice Coil LF:           3 "

Girişler

Sinyal Giriş :  1x Speakon (Pin 1+=+) (Pin 1-=-)

Sinyal Çıkışı: 1x Speakon (Pin 1+=+) (Pin 1-=-)

Housing:         Multiplex birch plywood

Boyutları WxHxD      430 mm.690 mm.450 mm.

Ağırlık 26.1kg.
