TEKNİK ÖZELLİKLER

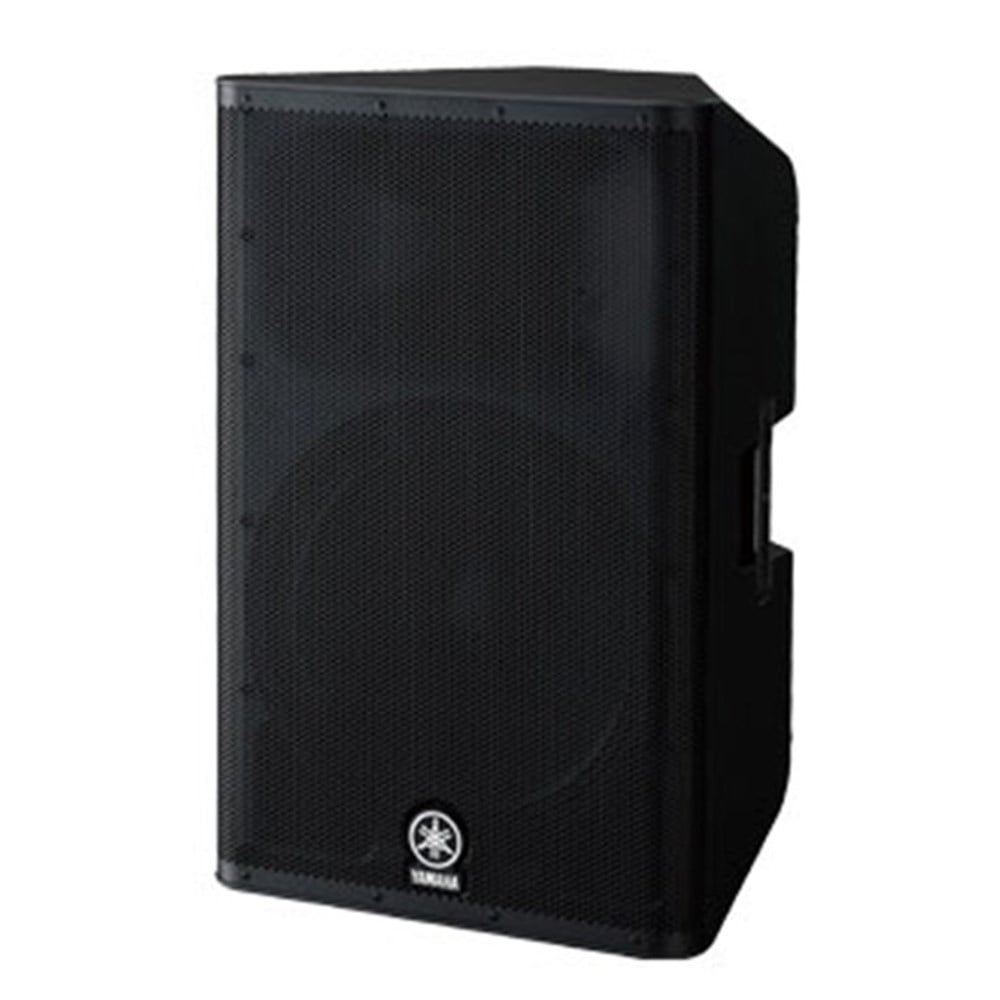

Speaker type 15"
2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range -10dB 49Hz
- 20kHz
Nominal coverage H 90°
Nominal coverage V 60°
Components LF Diameter:15"
cone, Voice Coil:2.5", Magnet:Ferrite
Components HF Diaphragm:1.4",
Type: 1" throat compression driver, Magnet:Ferrite
Crossover FIR-X
tuning™ (linear phase FIR filter)
Output power Dynamic:1100W
(LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
Maximum output level (1m; on axis) 133dB SPL
Processors D-CONTOUR:
FOH/MAIN, MONITOR, OFF
Power requirements 100V
- 240V, 50Hz/60Hz
Power consumption 110W
Dimensions (W-H-D) W)
445mm(H)700mm(D)380mm
Net weight 22.5kg
Others Material:
ABS (Matte Finish, Black)
