EON208P (JBL)

Marka : JBL

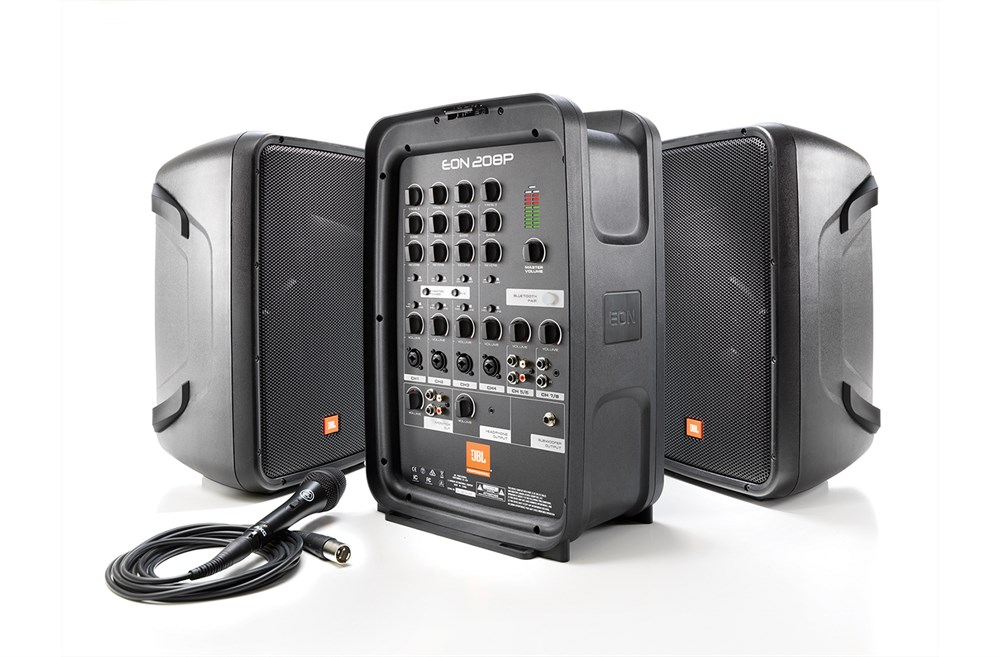

Packaged 8" 2-Way PA with Powered 8-Channel Mixer and Bluetooth®

Tavsiye Et

Yorum Yaz

ÖZELLİKLER

System Type	Portable 2-way full-range loudspeakers with powered mixer
Maximum SPL Output	121 dB peak
Frequency Range (-10 dB)	60 Hz - 20 kHz
Frequency Response (+/-3 dB)	70 Hz - 18 kHz
AC Input	100-120 V, 220-240 V 50/60 Hz
Amp Design	Class D
System Power Rating	300 W (2x 150 W stereo)
Output Connector	2 x 1/4" TS (unbalanced) amplifier outputs

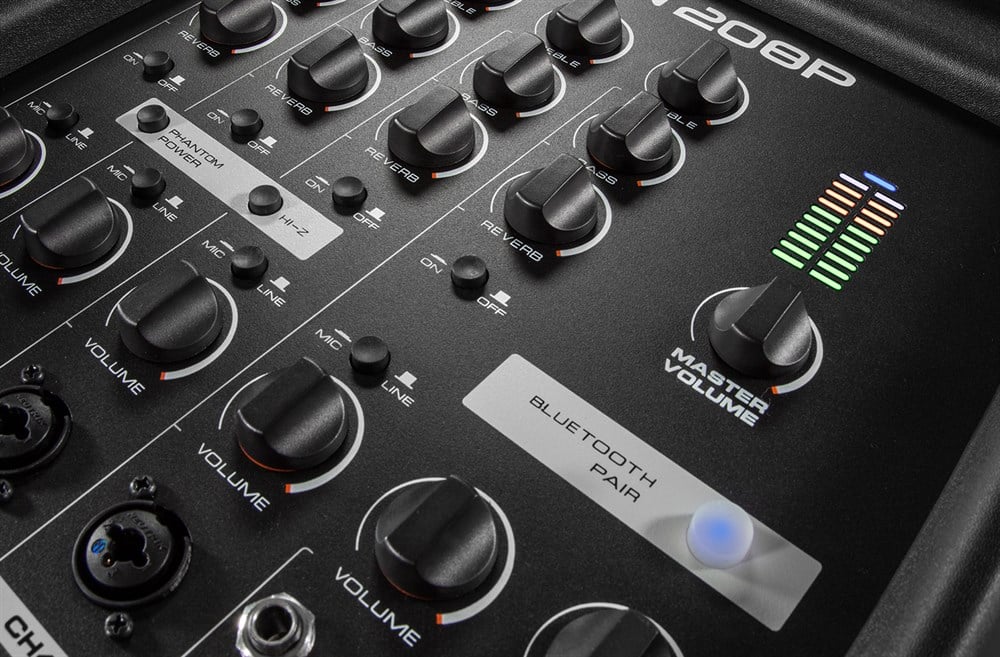

Channels	1-4: XLR/1/4" jack combo connectors 5-6: one pair of 1/4" balanced TRS jacks (stereo), and one pair of RCA jacks (stereo) 7-8: one pair of 1/4" balanced TRS jacks (stereo), and a 3.5mm stereo jack
Phantom Power	CH1 and CH2 have phantom power control and share the same selection switch
Hi-Z Selection	CH3 has a Hi-Z selection switch used for guitar signal input
Mixer Output Connectors	Monitor Out: one pair of RCA jacks (stereo), and one pair of 1/4" balanced TRS jacks (stereo) Headphone Out: 3.5mm stereo jack Subwoofer Out: 1/4" balanced TRS jack
Treble/Bass EQ	Per-channel high- and low-shelf filters; +/- 12dB cut and boost
System Limiter	On-board DSP limiting
LF Driver	1x JBL 8" (203mm) woofer
HF Driver	1x 1" Neodymuim black aluminum dome tweeter
Coverage Pattern	100° horizontal x 60° vertical
Crossover Frequency	2 kHz
Crossover Type	2-way passive network, 2nd order filters (12dB cutoff per octave)
Enclosure	Polypropylene
Suspension/Mounting	36 mm pole socket
Handles	One on top
Speaker Grille	Powder-coated perforated steel
Shipping Package（HxWxD）	22.6" (575 mm) x 30.5" (775 mm) x 15.7" (400 mm)
Net Weight	38.8 lbs (17.6 kg)
