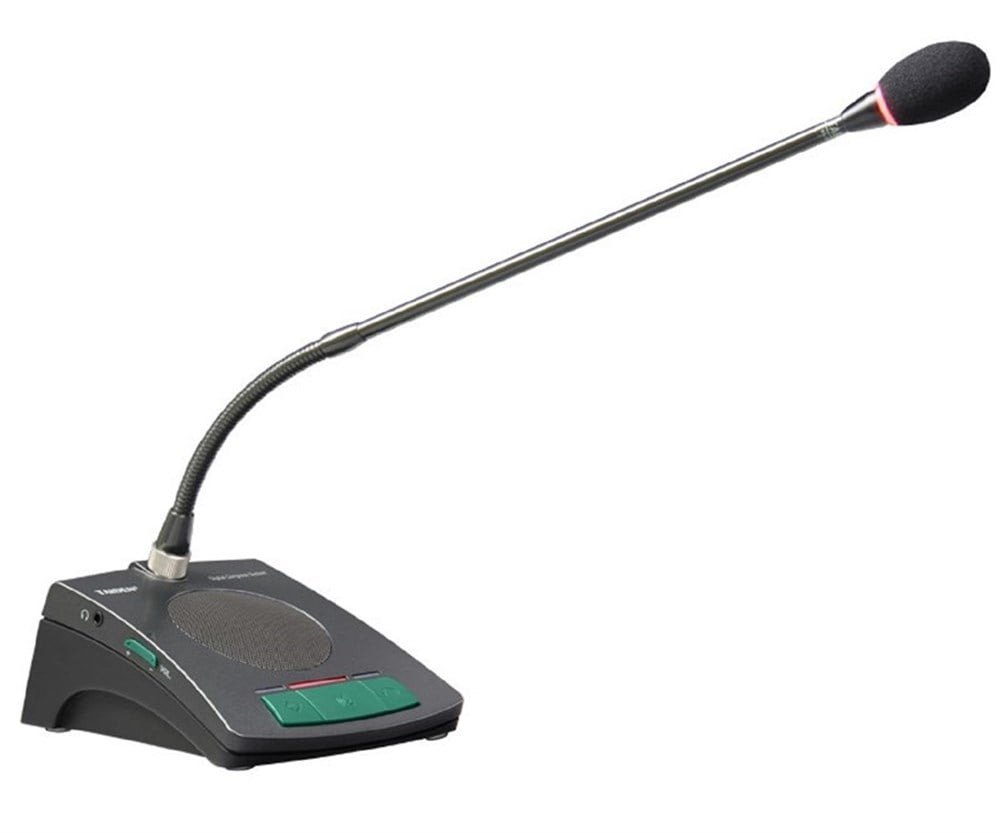

HCS-3938 C (HCS-3938 C)

Technical Specifications

Electrical

• Max. consumption 2 W

Headphone connection

• Frequency response 40 Hz to 16 kHz
• Earphone load impedance >16 Ohm
• Earphone output 10 mW

Microphone

• Transducer Electret-condenser
• Polar pattern Uni-directional
• Sensitivity -46 dBV/Pa
• Frequency response 80 Hz to 18 kHz
• Input impedance 2 kOhm
• Directivity 0°/180° > 20 dB (1 kHz)
• Equivalent noise 20 dBA (SPL)
• Maximum sound pressure level 125 dB (THD<3%)

Interface data

• Connector Ø 3.5 mm stereo jack for headphone

Mechanical

• Mounting Tabletop
• Dimensions (h x w x d) (w/o stem microphone) 71 x 124 x 138 mm
• Weight (incl. stem microphone) 0.9 kg
• Color Champagne (PANTONE 401 C) panel + black (PANTONE419 C) base / Charcoal gray (PANTONE Cool Gray 11 C)panel + black (PANTONE 419 C) base
• Stem length 410 mm (standard version),240 mm, 330 mm, 470 mm
