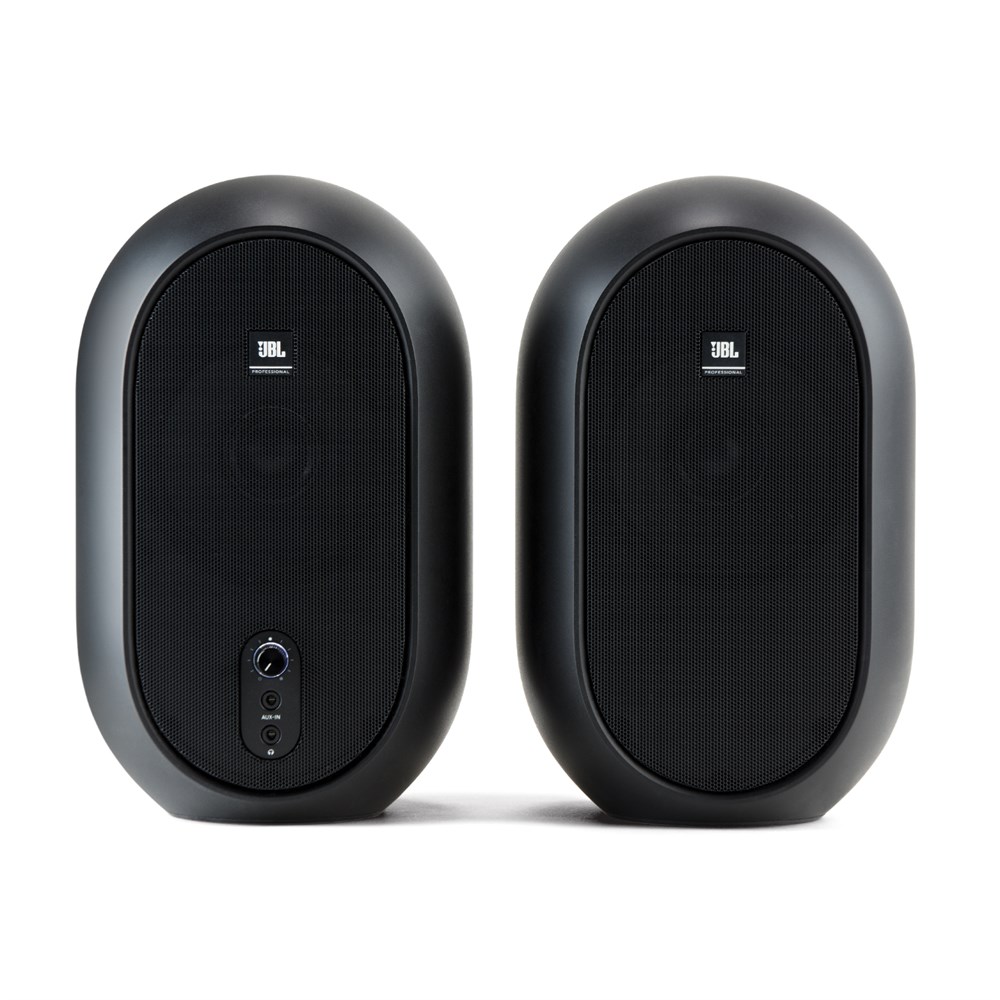

JBL 104 (JBL)

Marka : JBL

Tavsiye Et

Yorum Yaz

Master and extension speaker sold as one set

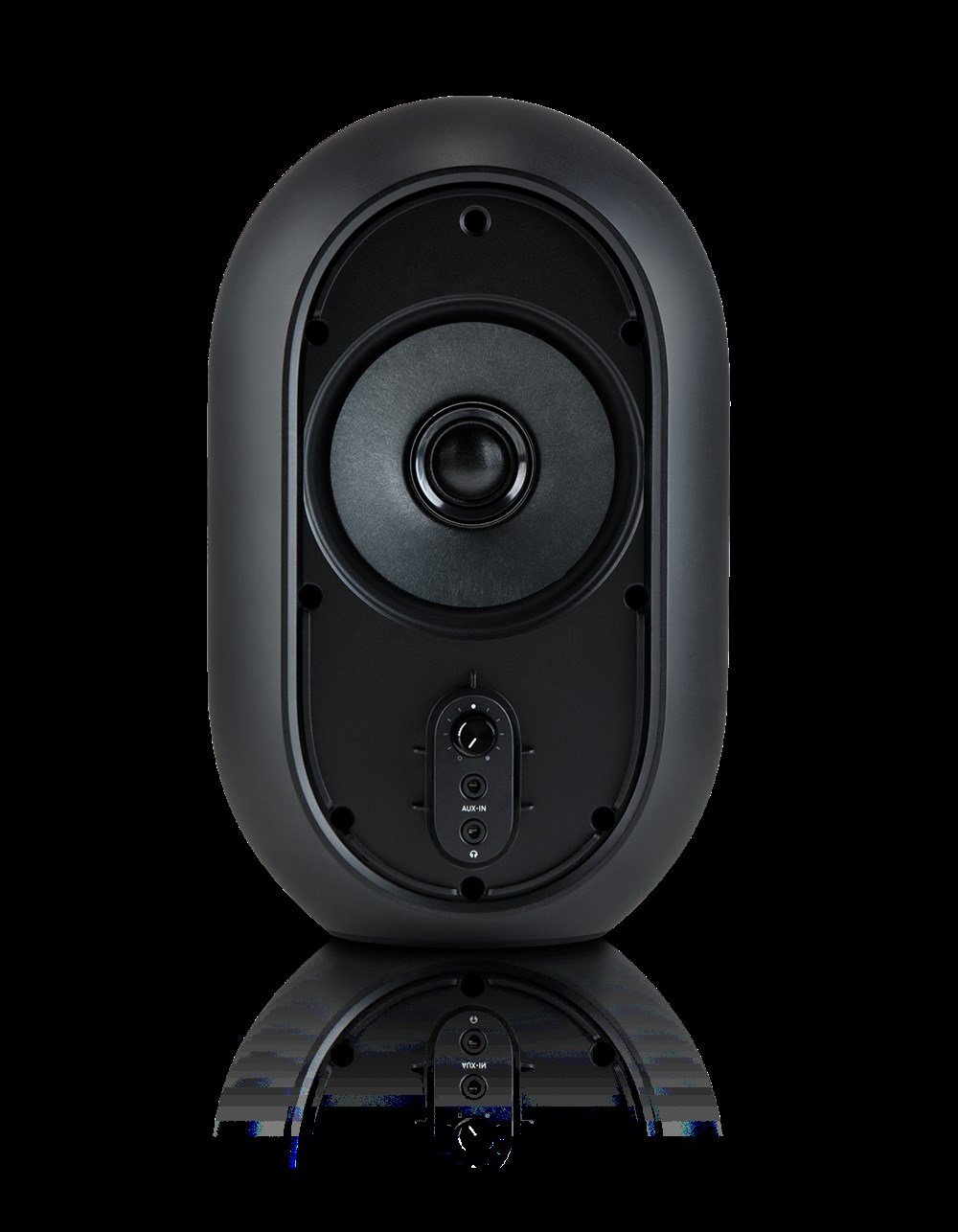

Coaxial 4.5-inch (118 mm) contoured LF driver with integrated 7.5-inch (19 mm) soft-dome HF driver
Contoured low-frequency port
Integrated 60-watt Class D power amplifier; 30 watts distributed to each speaker
Acoustically optimized for desktop placement
Three sets of inputs allow connection with professional equipment, personal music players and consumer-level devices
Master monitor includes electronics for the extension monitor, minimizing wiring and clutter
Front-panel volume control
Front-panel headphone jack with speaker mute feature
Integrated power supply

Low Frequency Driver	4.5 in (118 mm)
High Frequency Driver	0.75 in (19 mm), soft dome
Crossover	1725 Hz, 1st order
Input Sensitivity	87 dB / 1 m
Power Amp	60 W (30 W each speaker), Class D
Maximum Continuous SPL @ 1 meter	89 dB
Maximum Peak SPL	102 dB
Maximum SPL	104 dB (momentary peak)
MAXIMUM PEAK INPUT LEVEL (-10dBV / +4dBu)	+6 dBV / +20.3 dBu
Frequency Range	60 Hz - 20 kHz
SYSTEM DISTORTION CRITERIA	<10% THD at maximum output with full compressor / limiter engagement
ELECTRICAL DISTORTION CRITERIA	<0.2%THD @ 1 kHz, 2.83 VRMS output; <1% THD @ 1 kHz, full rated output
Signal to Noise Ratio	75 dBA (A-Weighted), 70 dBr (unweighted), relative to 2.83 VRMS output on HF
COVERAGE HORIZONTAL x VERTICAL	120º x 60º
Dimension (H x W x D)	9.72 in x 6.02 in x 4.88 in (247 mm x 153 mm x 124 mm)
Net Weight	Master Monitor = 4.54 lb (2.06 kg); Slave Monitor = 3.81 lb (1.73 kg)
ENCLOSURE TYPE	Ported
Enclosure Material	ABS with metal grille
ENCLOSURE FINISH	Matte black acrylic paint
Audio Output Connectors	1 x 3.5 mm (1/8") stereo headphone with auto speaker mute
Audio Input Connectors	2 x 1/4-inch (6.5 mm) balanced (+4 dBu); 2 x RCA (-10 dBV); 1 x 1/8-inch (3.5 mm) unbalanced (-10 dBV)
AC INPUT VOLTAGE	100 – 240 VAC (± 10%), 50/60 Hz
Current Draw	85 watts
