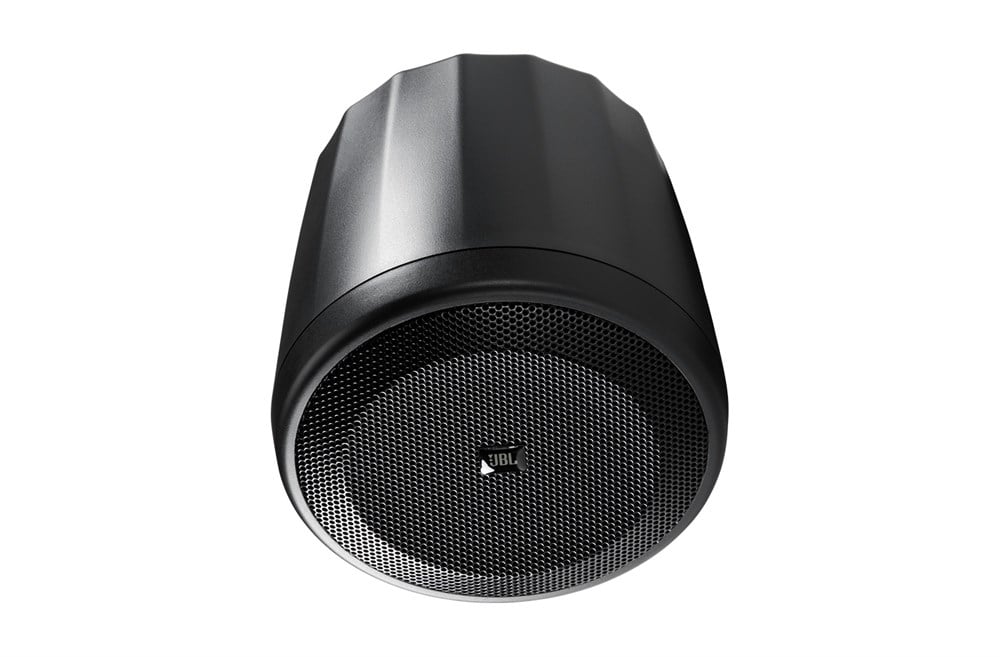

JBL C62P Sarkıt Hoparlör
JBL C62P Sarkıt Hoparlör
JBL C62P Sarkıt Hoparlör
JBL C62P Sarkıt Hoparlör

JBL C62P (JBL)

Marka : JBL

JBL C62P Sarkıt Hoparlör



Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz

ÖZELLİKLER







Frequency Response (-10 dB) 150 Hz – 20 kHz
Frequency Range (±3 dB) 200 Hz – 17 kHz
Power Capacity 50 Watts Continuous Program Power (2 hrs) 25 Watts Continuous Pink Noise (2 hrs) 30 Watts Continuous Program Power (100 hrs)15 Watts Continuous Pink Noise (100 hrs)
Nominal Sensitivity 87 dB (4.0 V, 1 W)84 dB (2.83 V)
Nominal Coverage Angle 140° (+25°/-50°)
Directivity (Q) 4.7
Directivity Index (DI) 6.2 dB
Rated Maximum SPL @ 1m 97 dB continuous pink noise, 103 dB peak
Rated Impedance 16 ohms (no transformer taps)
Recommended High-Pass Frequency 150 Hz
Transducer: Driver 60 mm (2.5 in), polypropylene-coated paper with pure butyl rubber surround, 20 mm (¾ in) copper clad aluminum voice coil with vented Nomex® coil-former.
Enclosure Material High impact polystyrene
Grille Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Environmental Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
Termination Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
Safety Agency Ratings Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions 128 mm (5.1 in) diameter x 121 mm (4.8 in) height to top of cabinet. 141 mm (5.6 in) to top of suspension bracket.
Net Weight (ea) 0.7 kg (1.5 lbs)
Shipping Weight (pair) 2.0 kg (4.3 lbs)
Included Accessories Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
Optional Accessories MTC-PC62 top panel / terminal cover
Colors Available in black or white (-WH). Paintable.
