JBL CONTROL 12C/T (JBL)

Marka : JBL

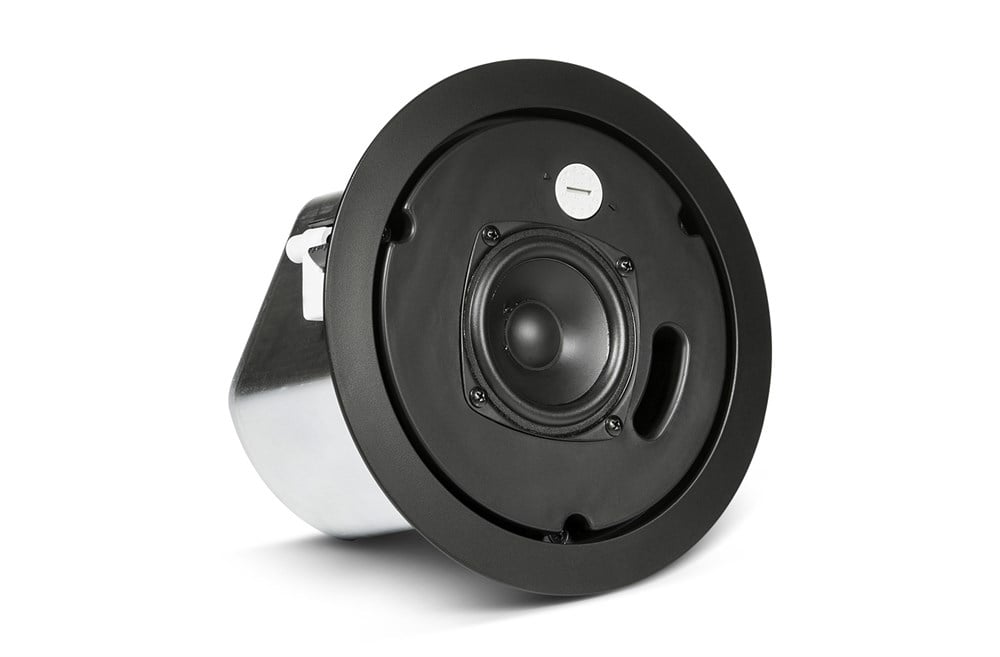

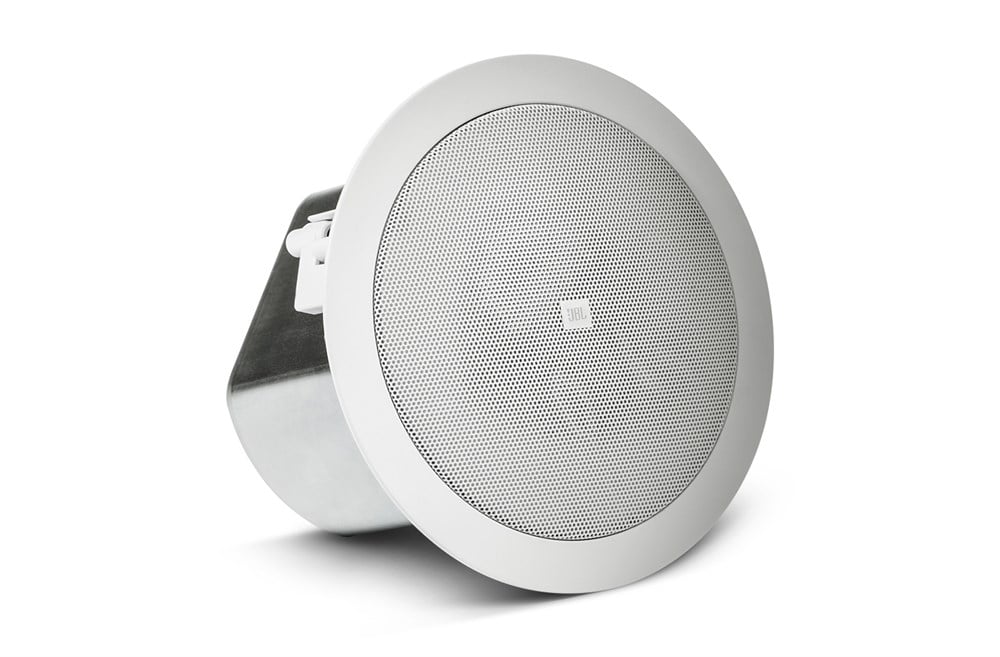

JBL  CONTROL 12C/T  Tavan Hoparlörü

8 ohm, 70V / 100V

15 W, 7.5 W, 3.8 W   (1.9 W 70V )



Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz

ÖZELLİKLER

Frequency Range (-10 dB) 68 Hz – 17 kHz
Power Capacity (at low-Z) 40 Watts Continuous Program Power20 Watts Continuous Pink Noise
Transformer Taps 15 W, 7.5 W, 3.8 W @ 70V and 100V (& 1.9 W @ 70V only)
Frequency Response (±3 dB) 95 Hz – 15 kHz
Nominal Sensitivity 84 dB
Nominal Coverage Angle 130° conical coverage
Directivity Factor (Q) 9.8
Directivity Index (DI) 7.4 dB
Rated Maximum SPL 97 dB @ 1 m (3.3 ft) average, 103 dB peak
Nominal Impedance 8 ohms (in direct/bypass 8Ω setting)
Full-Range Driver 76 mm (3 inch) with polypropylene cone, butyl rubber surround, Kapton™ voice coil former, high temperature voice coil, aluminum coupling ring for low distortion and HF extension
Input Connectors Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
Connector Wiring Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
Strain Reliefs Strain relief for two cables or two flex conduits via coupled clamping mechanism
Materials ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan
Safety Agency UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
Dimensions 196 mm diameter x 138 mm depth from back of baffle (7.7 in diameter x 5.4 in depth)
Ceiling Cutout Size Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included)
Ceiling Thickness Range Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thickceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses.
Safety Seismic Attachment One point, top surface
Net Weight 1.6 kg (3.5 lbs, one speaker)
Shipping Weight 6.7 kg (14.7 lbs, pair in master carton)
Included Accessories C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille.
Optional Accessories MTC-24NC new construction bracket MTC-24MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dog-ears for 8 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans
