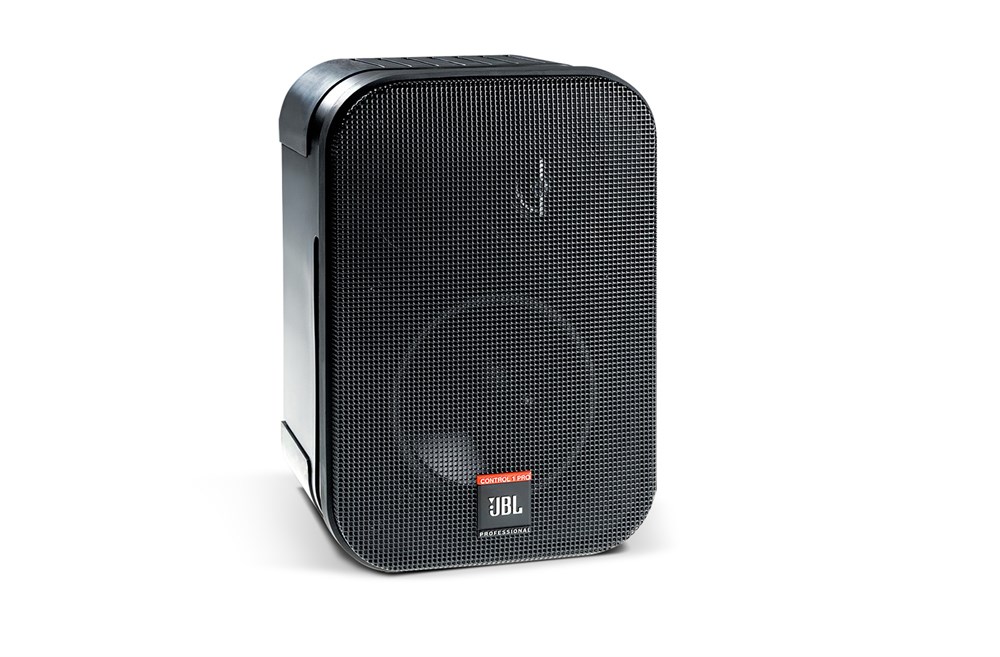

JBL CSS-1S/T
JBL CSS-1S/T

JBL CSS-1S/T (JBL)

Marka : JBL

JBL CSS-1S/T

8 ohm  70V / 100V

10 W ve 5 W



Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz

ÖZELLİKLER



Frequency Range (-10 dB) 85 Hz – 18 kHz
Frequency Response (±3 dB) 120 Hz – 16 kHz
Power Capacity 60 Watts
Sensitivity 86 dB SPL, 1W (2.83V) at 1m (3.3 ft)
Maximum SPL 106 dB at 8 Ohm Direct setting; 96 dB at 10W setting
Nominal Coverage 120ºH x 120ºV
Directivity Factor (Q) 6.2
Directivity Index (DI) 7.9 dB
Nominal Impedance 8 ohms (in 8Ω DIRECT mode, selectable on back panel)
Transformer Taps 10 W, 5 W (& 2.5W @ 70V)
Crossover Frequency 4.3 kHz
LF Driver 135 mm (5.25 in) low frequency driver
HF Driver 19 mm (0.75 in) polycarbonate dome tweeter
Input Connectors Spring-loaded terminals
Enclosure Material Polypropylene Structural Foam
Color Black
Dimensions 229 mm x 159 mm x 143 mm(9.0 in x 6.3 in x 5.6 in)
Net Weight (each) 2.0 kg (4.5 lb)
Shipping Weight (pair) 4.8 kg (10.5 lb)
Included Accessories Wall-mounting bracket assembly
