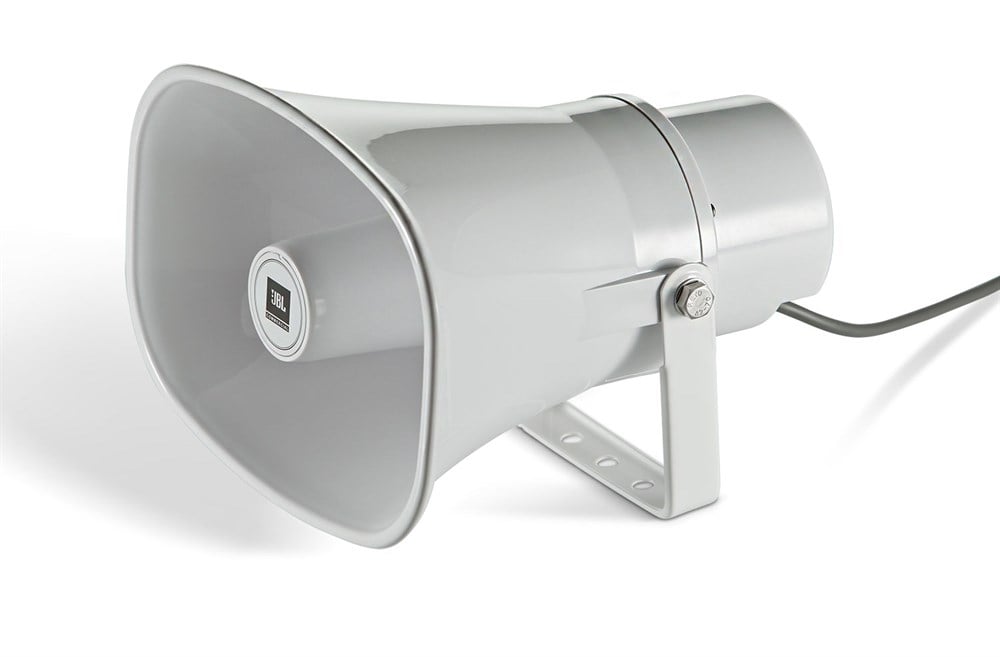

JBL CSS-H15
JBL CSS-H15
JBL CSS-H15
JBL CSS-H15
JBL CSS-H15

JBL CSS-H15 (JBL)

Marka : JBL

JBL CSS-H15  8 Ohm

 15 Watt 70V / 100V

70V: 15W, 7.5W, 3.8W, 1.9W. 0.9W

100V: 15W, 7.5W, 3.8W, 1.9W



Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz

ÖZELLİKLER







Frequency Response (-10 dB) 400 Hz – 7.5 kHz
Coverage Pattern 70° horizontal by 90° vertical (at 2 kHz and averaged 1 kHz – 4 kHz)
Included High-Pass Filter Passive 350 Hz high-pass filter built-in to protect against damage from frequencies below operational range.
Directivity Factor (Q) 10.9 (2 kHz)
Directivity Index (DI) 10.4 (2 kHz)
System Power Rating 15 W (60 W peak), 100 hrs
Sensitivity (1W, 2.83V@ 1m) 105 dB, ave. 1 kHz – 6 kHz; 111 dB at 2 kHz
Maximum SPL (1m) 117 dB cont ave. (123 dB peak), 1 kHz – 6 kHz;123 dB cont ave. (129 dB peak), 2 kHz, 15W input,8 ohm setting
Nominal Impedance 15W/70V, NC/100V tap: 333 ohms 7.5W/70V, 15W/100V tap: 667 ohms 3.8W/70V, 7.5W/100V tap: 1333 ohms 1.9W/70V, 3.8W/100V tap: 2666 ohms 0.9W/100V, 1.9W/100V tap:5332 ohms 8 ohms at 8 ohm direct setting
Transformer Taps 70V: 15W, 7.5W, 3.8W, 1.9W. 0.9W 100V: 15W, 7.5W, 3.8W, 1.9W
Full-Range Driver 33 mm (1.3 in) diameter with phenolic diaphragm
Horn Material ABS
Mounting Hardware Stainless steel powder-coated U-bracket (yolk) with 3 x 8.8 mm (0.34 in) dia mounting holes, stainless steel exterior hardware.
Color RAL9016 (horn and bracket)
Input Connection 300 mm (12 in) pigtail to bare wire; entrance via watertight fitting. Wire colors: red = positive (+); black = negative (-).
Environmental IP-65 rating per IEC529, salt spray per B117, stainless steel U-bracket and exterior hardware.
Safety Agency Ratings Transformer UL Registered per UL1876 “Isolating Signal and Feedback Transformers for Use in Electronic Equipment”
Dimensions (H x W x D) 163 x 222 x 232 mm (6.5 x 8.8 x 9.2 in) horn 181 x 222 x 232 mm (7.1 x 8.8 x 9.2 in) including mounting bracket. Depth excludes cable exit.
Weight (ea) 3.0 lb/1.36 kg
Shipping Weight (ea) 3.7 lb/1.68 kg
Included Accessories Stainless steel mounting bracket
