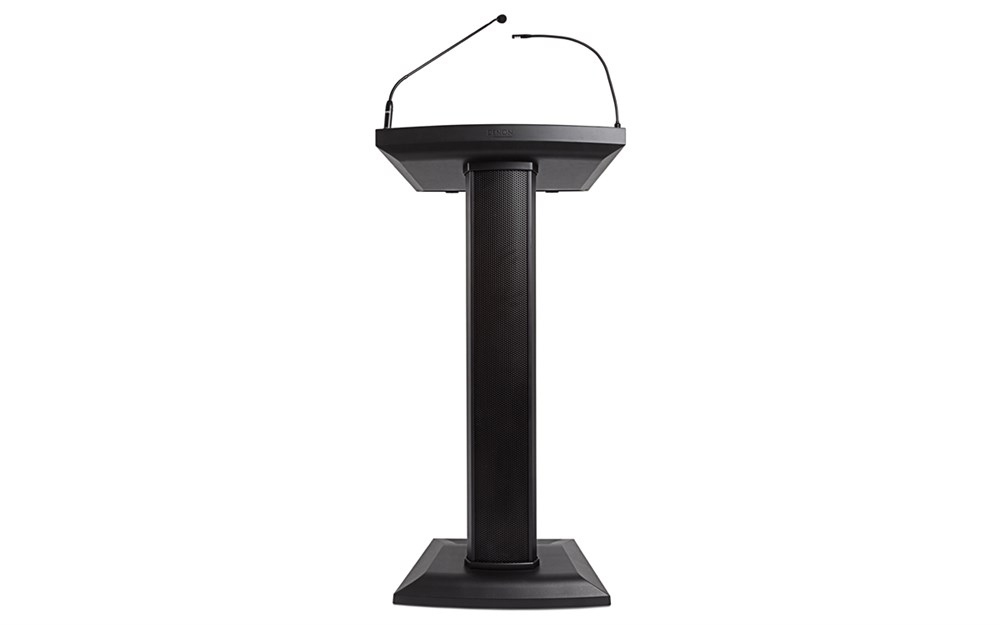

Lectern Active (Lectern Active)

Bi-amp design

(4) 5.25" full-range speakers

(1) Horn-loaded 1 inch HF driver, 25mm voice coil

Output Frequency Range: 80-20kHz

Max. SPL: 112dB (@ 1m)

Precision electronic crossover and limiter

2-channel audio mixer

Type: Condenser

Frequency range: 50-16kHz

Max. SPL: 130dB

Self Noise: 26 dB

Signal-To-Noise Ratio: 68dB

Impedance: 200Ω

Length: 23.5 in.

Weight: 0.35 lbs.

Mute button

(2) Volume controls (CH 1 and AUX)

(1) XLR microphone input

(1) 1/8” (3.5 mm) stereo input

(1) RCA stereo input pair (line-level)

(1) XLR output

(2) 5V USB Type-A charging ports

(2) 110 VAC convenience outlets (European model 1 x 220-240V convenience outlet)

Operating Temperature: 0-50°C

Storage Temperature: -20°C - 70°C, 85% RH

Input Voltage 100–120/220–240 V, 50/60 Hz, 1080 W

Fuse 100–120 V: T12.5AL 250V / 220–240 V: T6.3AL 250V

Dimensions: 24.8 x 15.0 x 47.0in (63.1 x 38.1 x 1194.8cm)

Dimensions (footprint of base): 21.5 x 14.5in (54.6 x 36.8mm)

Weight: 44.00 lbs. (19.96 kg)
