NBB75DFGB (NEUTRİK)

Marka : NEUTRİK

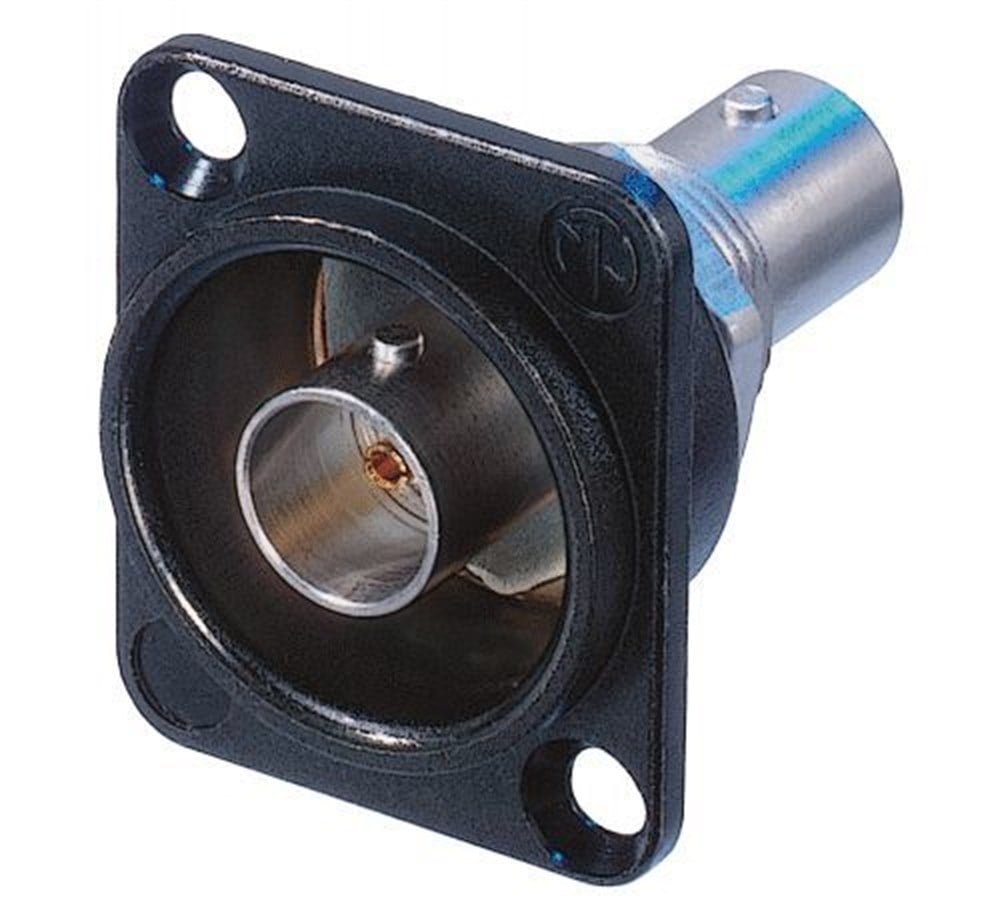

Neutrik NBB75DFGB Şase Tipi Bnc Konnektör

Technical Information

Product
Title NBB75DFG
Connection Type BNC 75 Ω
Gender female
Electrical
Signal Type HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
Contact resistance ≤ 3 mΩ (inner)
Contact resistance ≤ 2 mΩ (outer)
Dielectric strength 1,5 kVdc
Impedance 75 Ω
Insulation resistance > 5 GΩ
Rated voltage <50 V
VSWR ≤1.03/>37 dB up to 1 GHz
≤1.05/>32 dB up to 2 GHz
≤1.08/>28 dB up to 3 Ghz
Mechanical
Insertion force < 25 N
Lifetime > 1000 mating cycles
Wiresize
Locking device Bayonett
Mounting direction Front mounting
Chassis shape D
Material
Contacts Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact)
Insert PTFE
Shell Polyacetal (POM) (Insulation Sheell)
Shell plating Optalloy®
D-Shape housing Zinc diecast (ZnAl4Cu1) gal Ni plating
Environmental
Temperature range -30 °C to +85 °C
