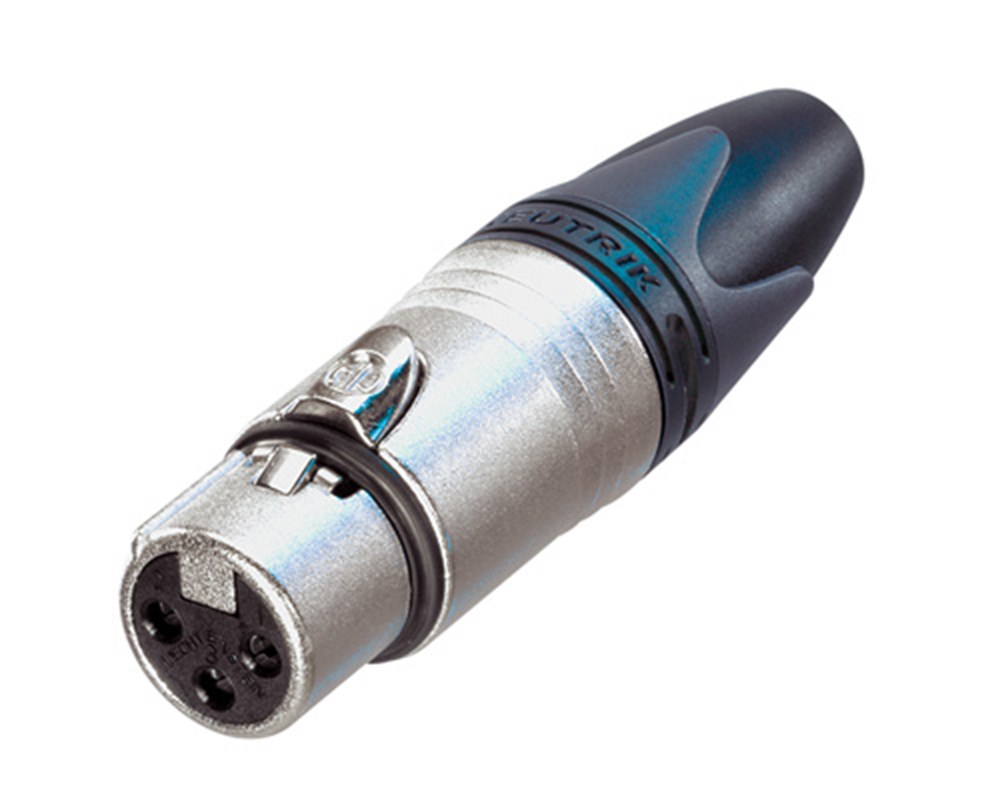

NEUTRİK NC3FXX 3 Pin Dişi XLR Konnektör (NEUTRİK)

Marka : NEUTRİK

Neutrik NC3FXX - 3 Pin Dişi XLR Konnektör

Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz
Product
Title NC3FXX
Connection Type XLR
Gender female
Electrical
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 3 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 16 A
Rated voltage < 50 V
Mechanical
Cable O.D. 3.5 - 8.0 mm
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize max. 2.5 mm²
Wiresize max. 14 AWG
Locking device Latch lock
Material
Boot Polyurethan
Contact plating 2 µm Ag
Contacts Bronze (CuSn8)
Insert Polyamide (PA 6.6 30 % GR)
Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 HB
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
