NC5FD-L-1
NC5FD-L-1
Marka : NEUTRİK

NEUTRİK NC5FD-L-1 XLR TİPİ KONNEKTÖRLER

(NEUTRİK)

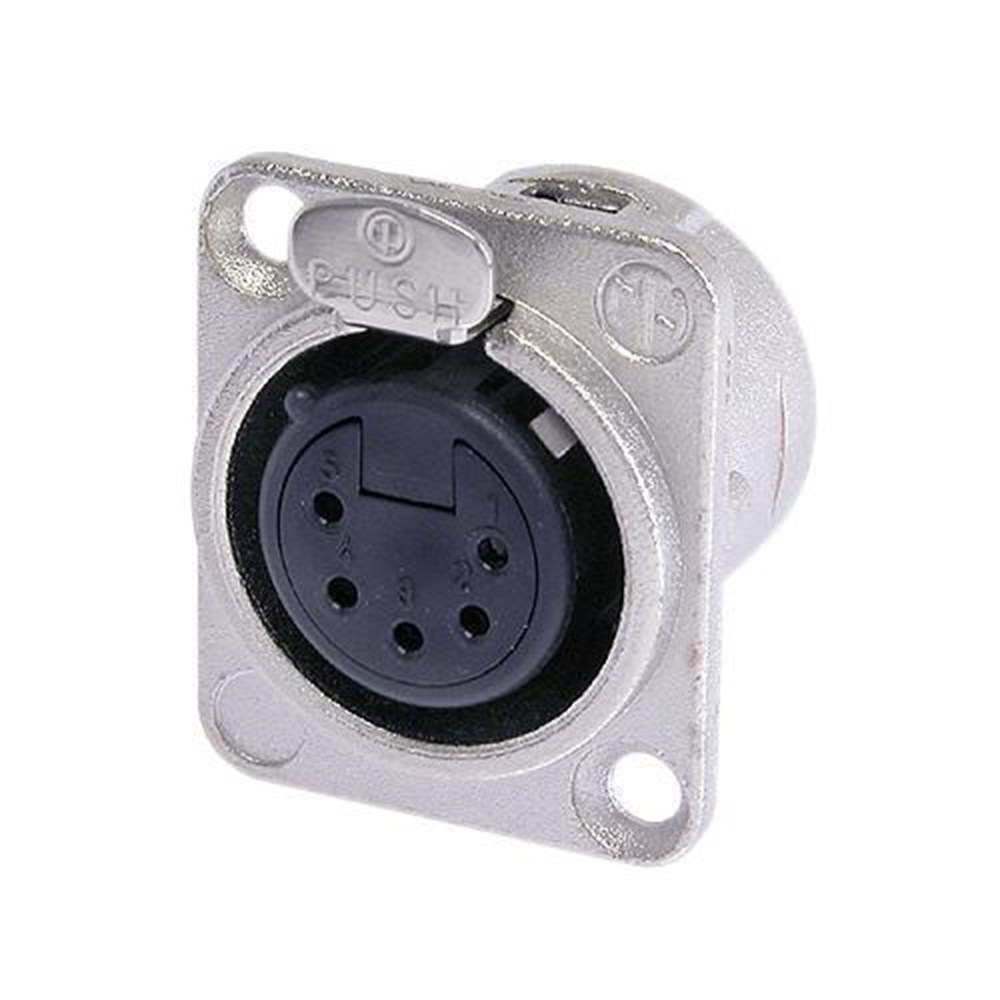

Neutrik NC5FD-L-1 5-Pin Şasi Dişi XLR Konnektör


Fiyat Sorunuz
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz

Technical Information





Product
Title NC5FD-L-1
Connection Type XLR
Gender female
Electrical
Capacitance between contacts ≤ 7 pF
Contact resistance ≤ 5 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 7,5 A
Rated voltage < 50 V
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize max. 1.0 mm²
Wiresize max. 18 AWG
Wiring Solder contacts
Locking device Latch lock
Chassis shape D
Material
Contact plating 2 µm Ag over 2 µm Ni
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 30 % GR)
Locking element Steel Ck67
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Environmental
Approvals UL
Flammability UL 94 HB
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
