NL2FX
NL2FX

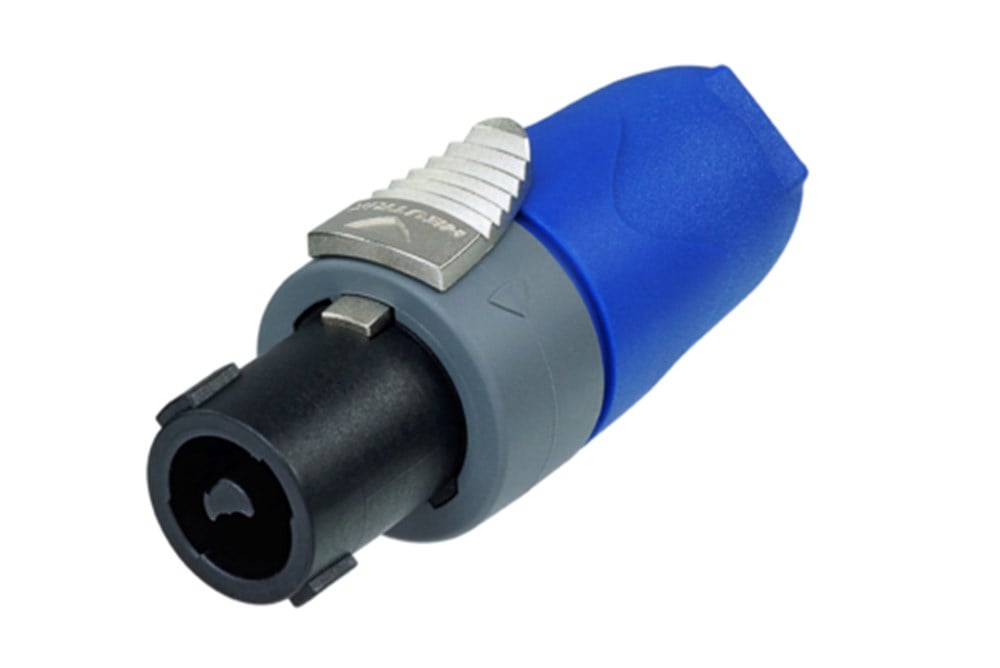

NEUTRİK NL2FX SPEKON TİPİ KONNEKTÖRLER (NEUTRİK)

Marka : NEUTRİK

Neutrik NL2FX SPEKON TİPİ KONNEKTÖRLER

2 pole cable connector, chuck type strain relief



Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz

Technical Information





Product
Title NL2FX
Connection Type speakON
Gender female
Electrical
Contact resistance < 2 mΩ (after lifetime)
Dielectric strength 4 kVdc (peak)
Insulation resistance > 1 GΩ (after dampheat)
Rated current per contact 40 A rms continuous
Rated current per contact 50 A audiosignal, duty cycle 50 %
Rated voltage 250 V ac
Attention speakON is not to be used as an AC mains or power supply connector!
Mechanical
Cable O.D. 6 - 10 mm
Cable retention ≥ 220 N (subject to cable O.D. and material)
Lifetime > 5000 mating cycles
Wiresize 1.5 - 4 mm²
Wiresize 16 - 12 AWG
Wiring screw type terminals or soldering
Locking device Quick Lock (latch)
Material
Contact plating 4 µm Ag
Contacts Brass (CuZn39Pb3)
Insert PBTP 20 % GR
Locking element Zinc diecast (ZnAl4Cu1)
Shell PBTP 20 % GR
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 HB
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
