NEUTRİK NP2C JACK TİPİ KONNEKTÖRLER (NEUTRİK)

Marka : NEUTRİK

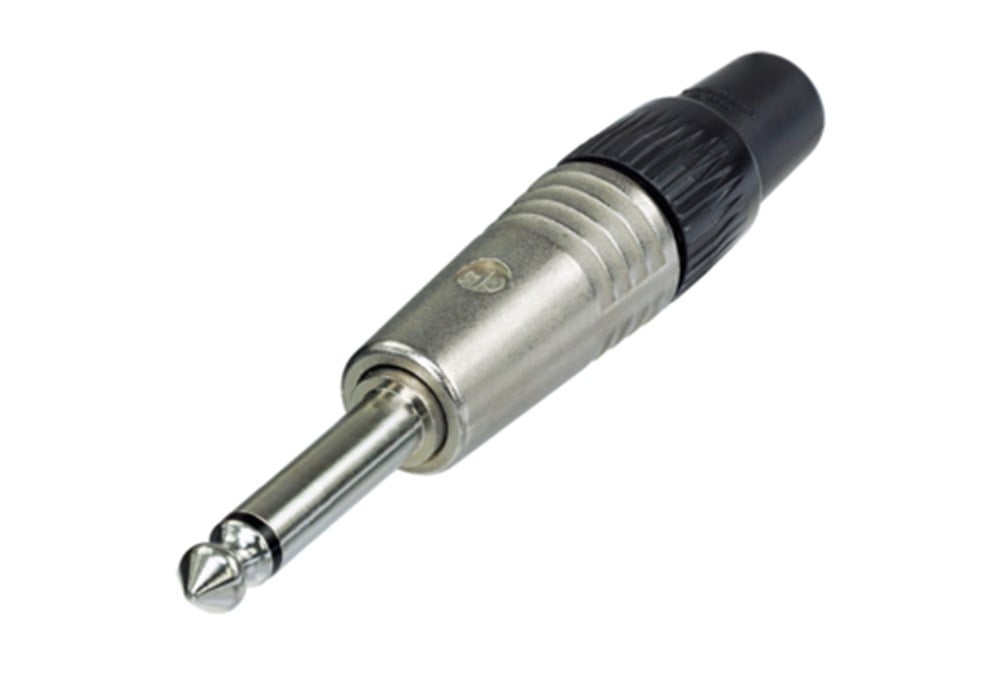

Neutrik NP2C Mono Çivi Konnektör



Technical Information





Product



Title

NP2C

Connection Type

Plug

Gender

male

Electrical



Contact resistance

depends on mating connector mΩ

Dielectric strength

1 kVdc

Insulation resistance

> 2 GΩ (initial)

Rated current per contact

depends on mating connector A

Rated voltage

< 50 V

Mechanical



Cable O.D.

4 - 7 mm

Lifetime

> 1000 mating cycles

Wiresize

1 mm²

Wiresize

18 AWG

Wiring

Solder contacts

Material



Bushing

Polyacetal (POM) + PU

Contact plating

2 µm Ni (Su)

Contacts

Brass (CuZn39Pb3)

Insert

Polyamide (PA 6.6 30 % GR)

Shell

Zinc diecast (ZnAl4Cu1)

Shell plating

Nickel

Strain relief

Polyacetal (POM)

Environmental



Standard compliance

IEC 60603-11 / EIA RS-453

Solderability

Complies with IEC 68-2-20

Temperature range

-20 °C to +65 °C
