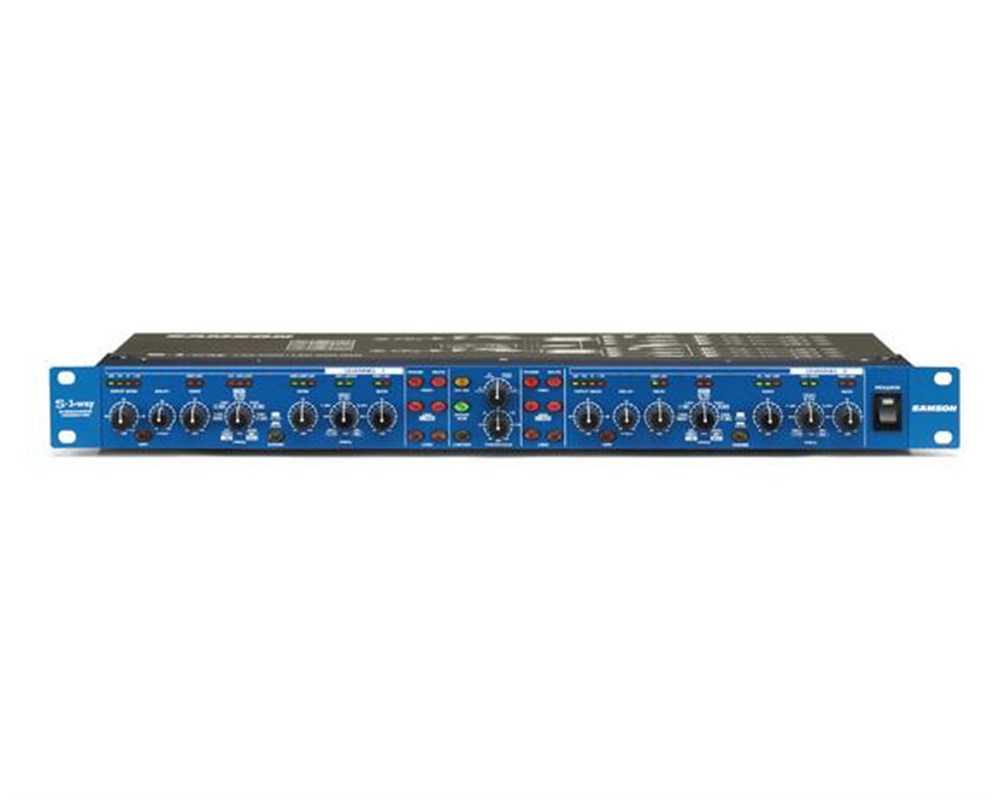

S-3 WAY (SAMSON)

Female Balanced XLR Impedance Balanced

>15k Ohms

Max. Input level

+26dBu balanced

Male Balanced XLR Impedance Balanced

100 Ohms

Max. Output Level

+26 dBu

Frequency Response

<10 Hz to >90 kHz, +0/-3 dB

Signal to Noise

(Ref +4 dBu), 22 Hz to 22 kHz, un-weighted 90dB high out, mid 90dB, low 94dB, all outs >100dB muted.

CMRR

Min.40dB, >55 dB @ 1 kHz

Crossdover Type

Linkwitz-Riley, 24 dB/Octave

Power Consumption

14 Watts

Power Inlet

Standard IEC receptacle / with Fuse

Dimensions

1 3/4" (44,5 mm) * 19" (482,6 mm) * 8 1/2" (217 mm)

Net Weight

3 kg
