Marka : Soundcraft

Soundcraft

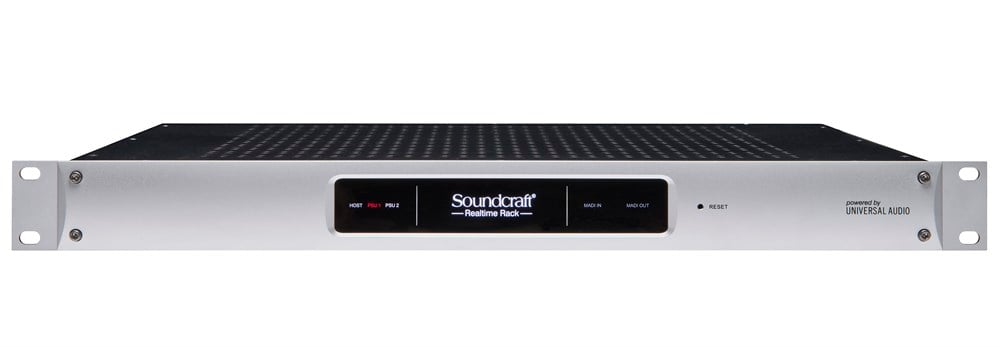

REALTIME RACK



Fiyat İçin

Ankara :0312 309 52 26

Kayseri:0352 222 00 08

Özellikler

Specifications

Audio Connector Type MADI - Dual Optical SC-Plug (ISO/IEC 9314-3) MADI Format:
MADI Format AES10 (64 channels)
Supported Sample Rates 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz (48kHz only, when used with Soundcraft Vi console)
Host Connector Type Thunderbolt (Dual connectors)
Word Clock BNC - One Input, One Output
Word Clock Input Termination 75 Ohms, switchable
Supported Clock Sources MADI, Word Clock, Internal (Thunderbolt/FireWire)
AC Connectors 2
AC Connector Type IEC Male with integrated switch POWER SUPPLY
Power Configuration Two switching power supplies. Integrated failover circuit controls redundant power supplies
AC input Range 100-240 VAC
Power Rating Less than 30 Watts
Frequency 50-60 Hz
Humidity 60% maximum
Temperature 0°C to +45°C
Rack Space 1U
Chassis dimensions 431.8 mm (17") W x 304.8 mm (12") D x 33.8 mm (1.3") H
Weight 4.1 kg (9 lbs)
Shipping Weight 6.3 kg (14 lbs)
